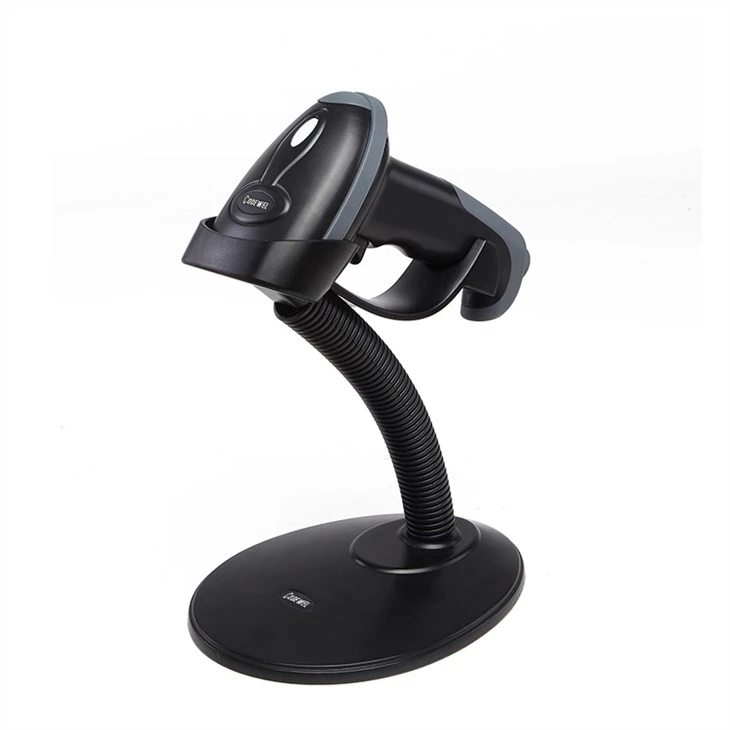

Laser Blurtooth Barcode Scanner

Laser Blurtooth Barcode Scanner Performance parameter

Memory:4 Mb ican store 30.000 barcodes,calculated in13 characters]

Scanning method: manual

Light source: 610~630nm laser diode

Barcode Sensitivity:Tilting:±60°@0°Rolland0°Skew

                                Pitch: ±60°@0°Roll and 0°Pitch

Contrast:≥30% Reflection Difference Scanning speed:300times/s

VisualIndicator:LED &buzzer

Laser Blurtooth Barcode Scanner Supported Barcode

EAN.UPC.Code 39.Code 93.Code128.UCC/EAN128.Codabar Interleaved 2 of 5,

ITF-6.ITF-14.ISBN.ISSN.MSI-Plessey.GS1Databar.GS1Composite Code.Code 11 Industrial25,Standard25PlesseyMatrix 2 of 5

Interface

Communication Interface:USB(wired for data transferring),MINI USB(wireless for data transferring

Radio Frequency:Bluetooth 4.0,0ptional(2.4GHz~2.483GHZ)

Transmission distance:30-80 meters (openyard)

Electric power

BatterySpecification:Lithium Battery

Standbytime:≥5 days

Battery capacity:1100mAh

Working current:170MA

Charging time:4H

Laser Blurtooth Barcode Scanner Environmental parameters

Working temperature:-20℃+50℃

Storage temperature:-20℃+70℃

Relative Humidity:5%~95%[Non-condensing]

Ambientillumination:0-10000 LUX

Electrostatic Protection:4KV(DirectDischarge)10KV(Air Discharge)

Drop/Shock Resistance:withstands multiple times1.2 meters drops to concrete

Protection Level:IP54

Depth of field and resolution (1mil=0.0254MM)

4MIL--27-60MM

5MIL--18-130MM

10ML---10-320MM

20MIL---19-600MM

Carton details

1Carton(withstand):5243.562cm/40pcs/23kgs(box:211510cm/1pc/0.55kgs)

1Carton[withoutstand):574045cm/50pcs/16kgs(box:18.511'8.5cm/1pc/0.35kgs]
