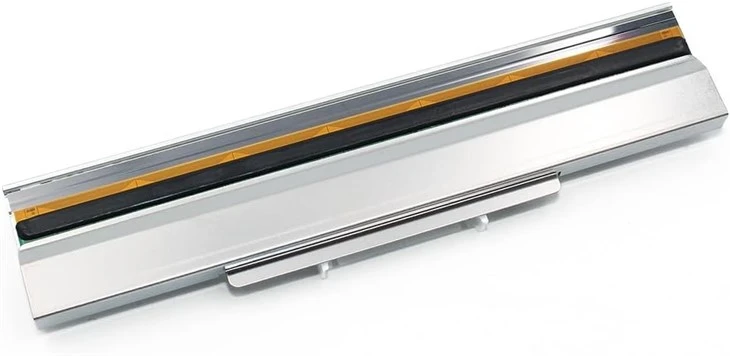

New Printhead For TSC MB240 MF2400 Thermal Printer Assy 203dpi Genuine 98-0800022-01LF
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC MB240 MF2400 Series Printer
RESOLUTION:203dpi
P/N:98-0800022-01LF
Send Inquiry
Chat Now
Product Introduction
| Parameter | Specification |
|---|---|
| Model Number | 98-0800022-01LF |
| Compatibility | TSC MB240, MF2400 Series Thermal Printers |
| Print Method | Direct Thermal / Thermal Transfer |
| Resolution | 203 dpi (8 dots/mm) |
| Print Width | 104mm (4.09 inches) |
| Number of Dots | 832 dots (8 dots/mm × 104mm) |
| Dot Density | 203 dpi (horizontal × vertical) |
| Resistance per Dot | ~100–200Ω (typical range) |
| Operating Voltage | 5V DC or 24V DC (verify printer manual) |
| Maximum Current | ~0.8–1.2A (depends on print conditions) |
| Print Speed | Up to 300 mm/s (printer-dependent) |
| Duty Cycle | Continuous (industrial-grade durability) |
| Interface Type | Flexible PCB (FPC) connector |
| Connector Pin Count | 14–16 pins (verify with printer manual) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Material | Ceramic substrate, wear-resistant coating |
| Lifespan | ~100–150 km (varies with media and usage) |
| Weight | Approx. 80–100g |
