Automatic Sealing Machine

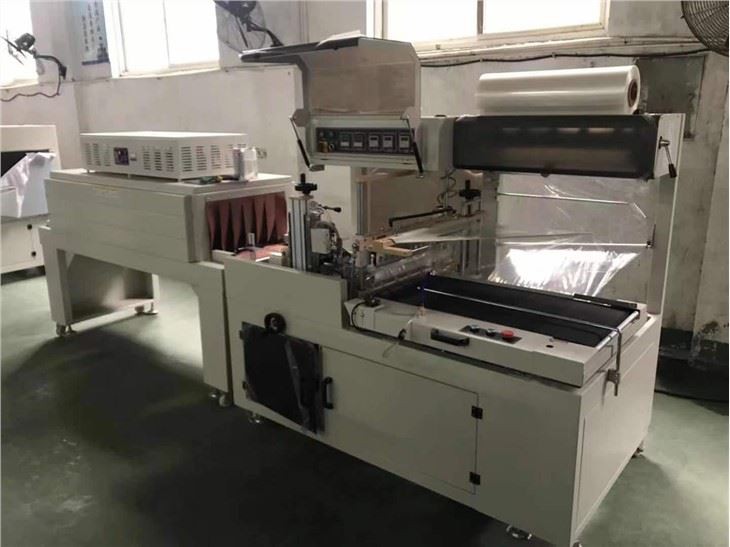

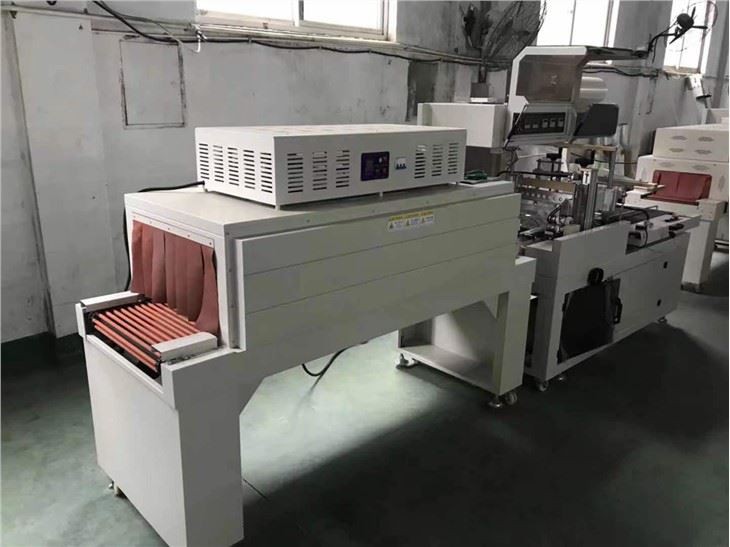

WS888 automatic L-type sealing machine concentrates bag-molding ,sealing, cutting and object transmission in one operation; use shrink film as packaging materials. It has advantages of simple operation and high capacity. It is suitable for the need of big scale production. WS999 thermal shrink machine is specially designed to combine with WS888 to shrink film after sealing. After sealing and cutting, products are transmitted into thermal shrink tunnel for shrinking. • High capacity of 25packs/min • Simple adjustment is done when packing size changes, no other assistant device is needed • Packing of small size of objects is reached by functional choice • Advantage of short sealing time and perfect sealing strength • Adopt American “Dupont” Teflon coat for sealing cutter that has function of stick-proof and anti-high temp. • Automatic film feeding and waste film collection • Vertical & horizontal photoelectric sensors are optional for differentobject

Model :WS888 Capacity :1200-1600 packs/hour Power Source: 220V/50-60HZ Air Pressure :0.5 MPa Total Power :1.8 Kw Conveyor Motor :AC 220V/90W Power of :550W Motor of Film :AC220V/25W(have Transverse Sealing Feeding brake) Power of Vertical :500W Motor of Waste: AC220V/40W(have Sealing Film Pulling brake) Sealing Temp. 170°C,according to Motor of Waste :AC220V/15W thickness of film Film Turning Sealing Time: 0-3 Sec, normally Packing Material :POF, OPP, PE 0.8-1.2 Sec Thickness of Film :0.03-0.20mm Max. Sealing Size: L560*W350mm Speed of Conveyor :21.3m/min(front), 20m/min(rear) Max. Packing Size :L560*W450*H150mm Speed of Film :17.6m/min Machine Size :L1650*W880*H1450 Feeding mm Speed of Film Pulling: 19.4m/min Weight :290 Kg
