Product Introduction

Q Series Label Rewinder

Rewind label material into clean and uniform rolls and save time.  Our label rewinders

wind up labels into a roll as they come out of a printer into any size roll diameter and

on any core diameter.  Rewinders make printing large batches of labels more efficient.

With various core sizes, label widths, roll diameters and options to choose from, there

is a Rewinder to fit any job you may have.

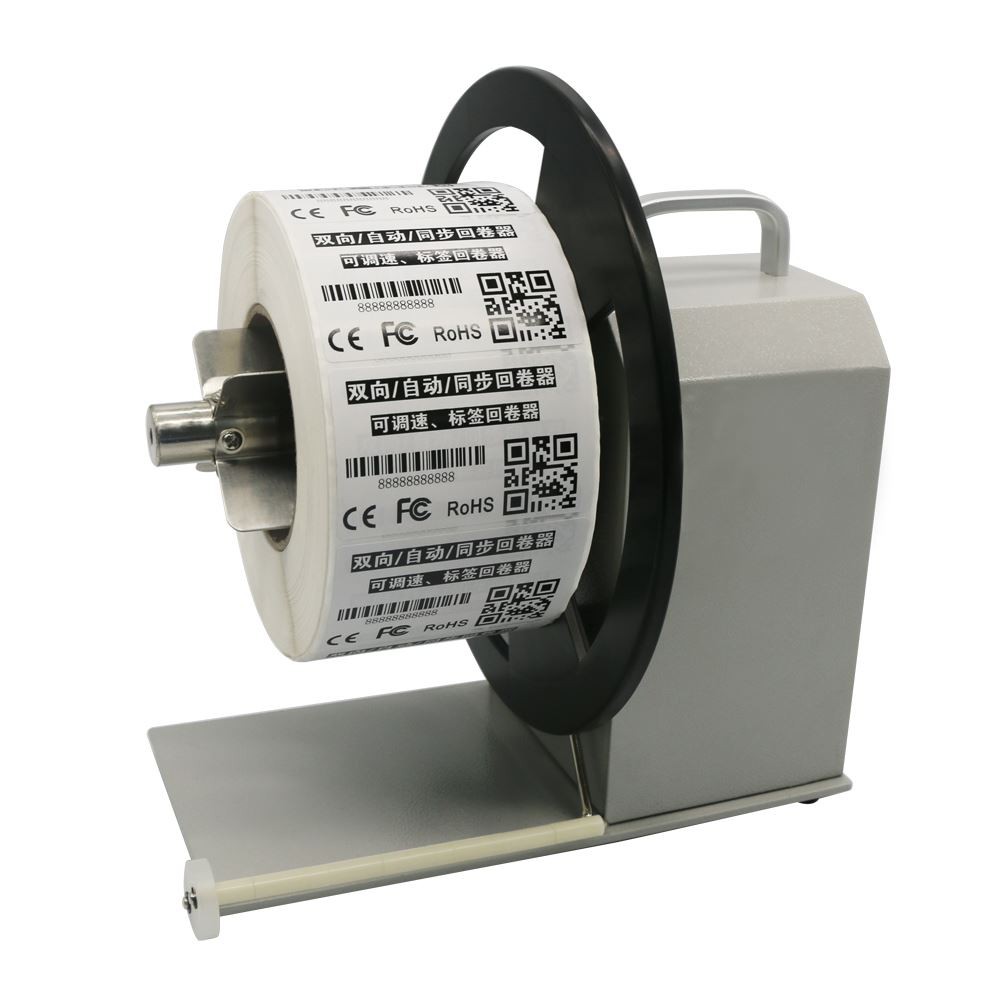

Q label rewinder (3)

Q Series Label Rewinder Data Sheet

Model BSC-Q5BSC-Q6
Rewind Speed
1-10 IPS1-10 IPS
Max. Label Width90mm120mm
Label Roll DiameterMax.O.D.230mm
Core Diameter1''(25mm)/1.5''(40mm)/3'' (76mm)
Rewinding TypeTwo-way Rewind Auto-Sync Rewind Speed Reguation Rewind
Speed tunerStepless speed regulation
Induction MethodRod Induction
PowerInput :100-240V 50/60Hz DC Output:24V
Dimension(L)285mm*(W)230mm*(H)245mm(L)240mm*(W)230mm*(H)255mm
Carton size(L)285mm*(W)255mm*(H)310mm(L)295mm*(W)275mm*(H)330mm
Net weight2.6KG4.5KG
Gross weight3.6KG5.2KG
EnvironmentTemperature:0-45℃ Relative humidity:25%-85%

Q label rewinder (4)

What to look for with a label rewinder?

There are three features to look for with a label rewind unit.



Motor power.   As labels come out of the printer and are rolled onto cores, they can become very heavy.   Smaller underpowered rewinders would struggle to turn the motor.



Core size.   Labels are typically rolled onto three sizes of core.   Make sure you get a rewinder with the correct sized  core, or buy one with an adjustable one.



Tension Adjuster.   The Tension Adjuster means the label rewinder smoothly takes up the printed labels – without undue stress on the labels, printer or rewinder motor.
