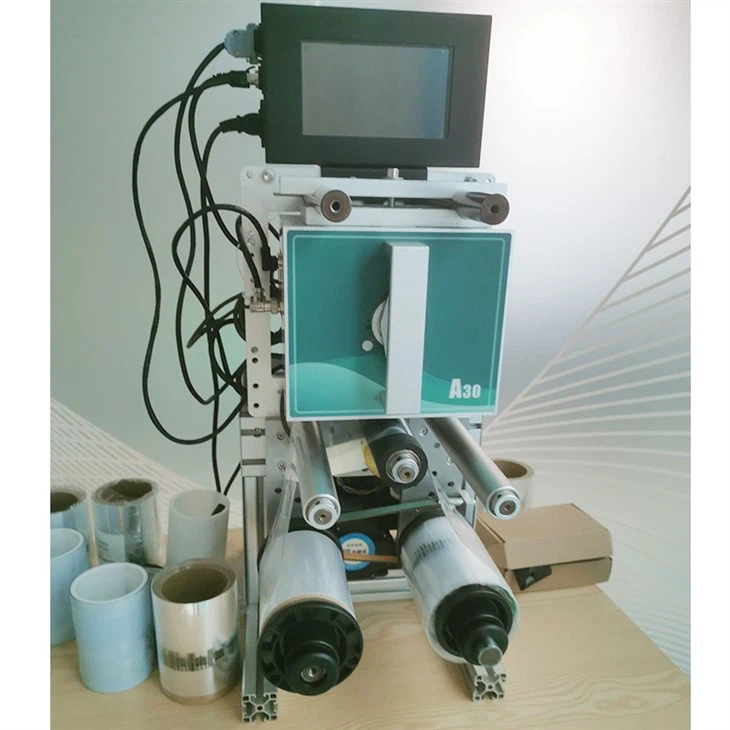

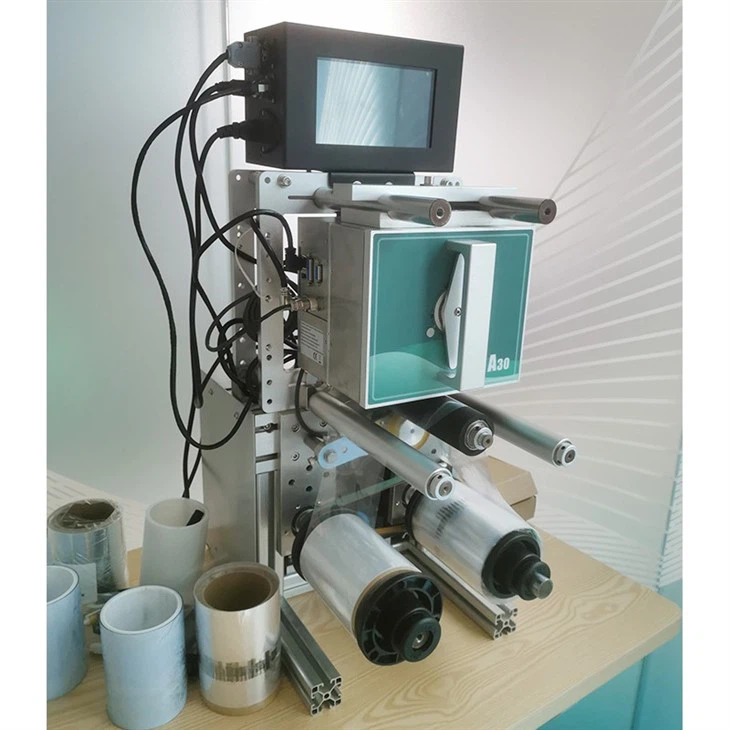

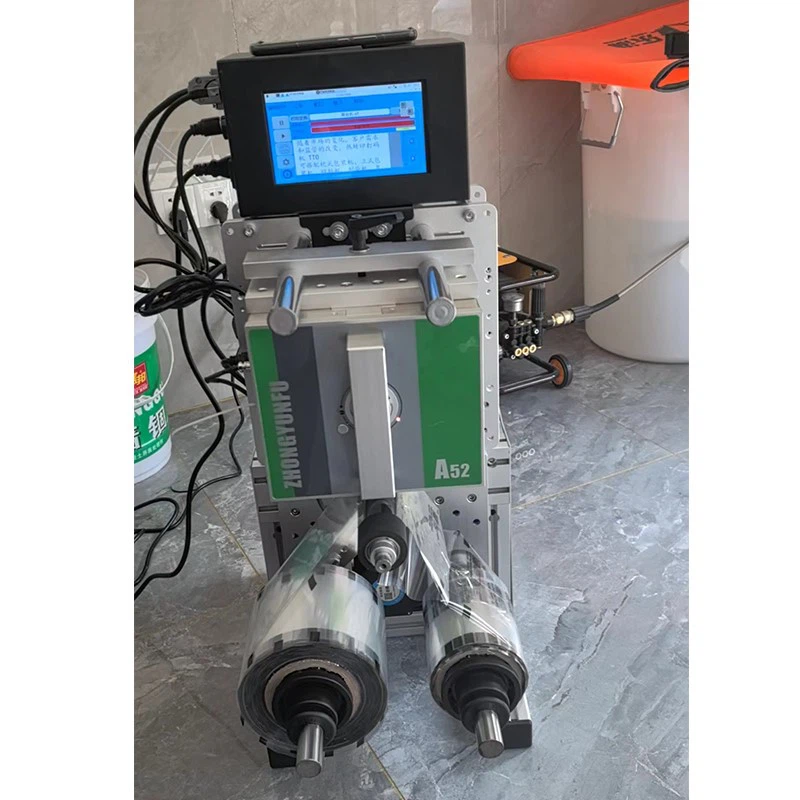

Thermal Transfer Barcode High-speed TTO Printer for Expire Date Printing

Machine structure

Intermittent continuous left-hand and right-hand integrated machine, all metal parts, no air supply required

Maximum printing width

32mm (300dpi)

Printing area

32×75mm intermittent; 32×200mm continuous

Printing speed

100-500mm/s intermittent; 50-600mm/s continuous

Printing frequency

350 times/minute intermittent; 450 times/minute continuous

High performance indicators

450 packages per minute; free AiMa editing software;

Many-to-many control

One controller can control multiple printers, with no limit on the number of user rights configuration to avoid improper
operation.

Printing features

No external software is required to support one object and one code, automatic positioning of the printing terminal, bad point
detection, no manual adjustment, and printing at the start.

Hardware configuration

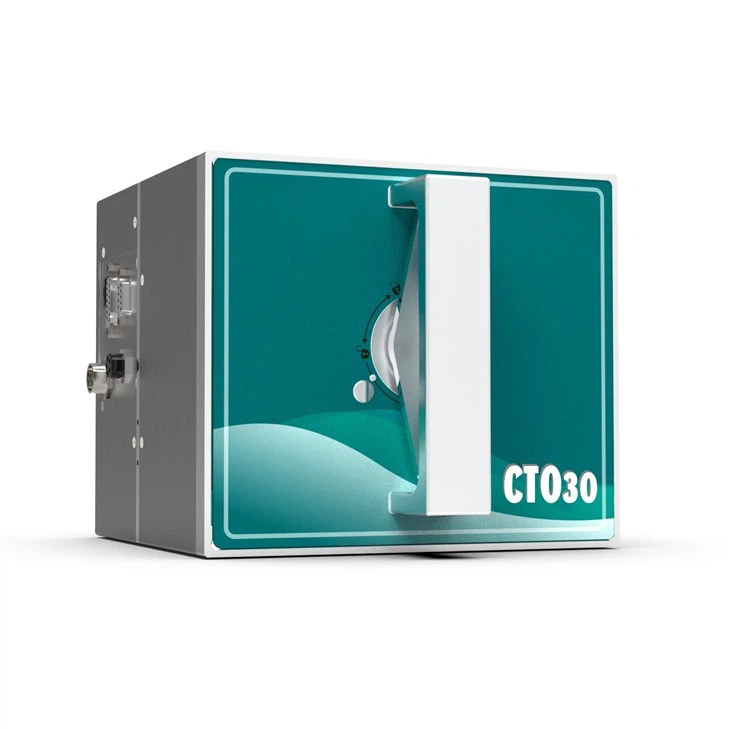

1. Print body

32-bit CPU, 256MB memory, 512MB FLASH.

2. Controller

64-bit 4-core CPU, no less than 1GB memory, no less than 16GB storage

3. Communication

Print body Gigabit/100M Ethernet, WIFI, USB, serial port.

Controller

Gigabit/100M Ethernet, WIFI, USB, Bluetooth.

Support soft packaging material types

PET, PE, OPP, BOPP, CPP, PA, BOPET, BOPA and other films and composite films.

Alarm function

Insufficient ribbon to avoid missing.

Ribbon specifications

55×600 meters

Ribbon types

Mixed base/resin base/reinforced mixed base/reinforced resin base

Environmental conditions

0℃ to 40℃; humidity: 10% to 90%, non-condensing

Machine size

Height 180mm, width 170mm, length 210mm
