| Product Name |

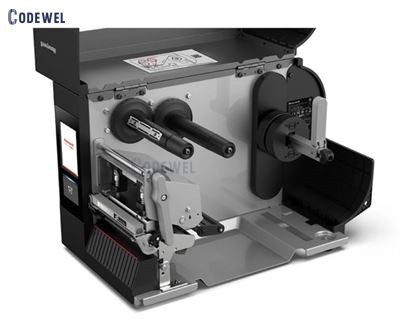

Honeywell PX240S Industrial Label Printer |
| Brand |
Honeywell |
| Model |
PX240S |
| Display Options |
3.5" full-touch color LCD screen (PX240SF), 2.36" keypad screen (PX240SC), or 3.5" full-touch color LCD with RFID functionality (PX240SR) |
| Print Method |
Thermal transfer and direct thermal |
| Processor |
Arm Cortex-A7, 800 MHz |
| Memory |
128 MB flash, 128 MB DDR3 SDRAM |
| Print Resolution |
203 dpi (8 dots/mm) or 300 dpi (11.8 dots/mm) |
| Print Speed |
Up to 250 mm/s (10 ips) at 203 dpi; Up to 200 mm/s (8 ips) at 300 dpi |
| Maximum Print Width |
108 mm (4.25 inches) at 203 dpi; 105.7 mm (4.16 inches) at 300 dpi |
| Maximum Print Length |
4.8 m (15.75 feet) at 203 dpi; 2.2 m (7.22 feet) at 300 dpi |
| Media Handling |
Supports a variety of label materials, including non-continuous, black mark, tag, hole, notch, or continuous label paper |
| Ribbon Support |
Inner or outer carbon ribbon; Maximum roll diameter of 80 mm (3.15 inches) |
| Interfaces |
USB 2.0 host and device, Ethernet (10/100 Mbps), RS-232, optional wireless (IEEE 802.11 b/g/n/ac), parallel, GPIO, and serial interfaces |
| Printer Languages |
Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL; XML for SAP AII and Oracle WMS |
| Barcode Symbologies |
Supports all major 1D and 2D symbols, including UPC/EAN, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, etc. |
| Fonts |
Monotype font engine; supports non-Latin fonts via WTLE, and customers can download Truetype fonts |
| Graphics |
Supports PCX, PNG, GIF, and BMP file formats; other formats supported through Label Generation Tools |
| Physical Dimensions |
Length: 438 mm (17.24 inches); Height: 270 mm (10.63 inches); Width: 249 mm (9.80 inches) |
| Weight |
10.82 kg (23.85 lbs) |
| Operating Environment |
Temperature: +5°C to +40°C (+41°F to +104°F); Humidity: 20% to 85%, non-condensing |
| Storage Environment |
Temperature: -20°C to +70°C (-4°F to +158°F); Humidity: 20% to 85%, non-condensing |
| Special Features |
Rugged metal frame for durability; Minimized internal components for a sleek design; Large transparent window for easy media monitoring; Side-loading ribbon and media; Supports bottom paper recycling; Dual sensors for dynamic positioning; Adjustable dual pressure rods and dual paper clamps for stability; Ergonomic print head lever design; Modular front sensor design for easy cleaning and replacement; One-click printer driver installation; Supports Windows configuration and one-to-one management; Rich accessory options for complex scenarios; Optional RFID functionality. |
| |
|
| |
|
| |
|
