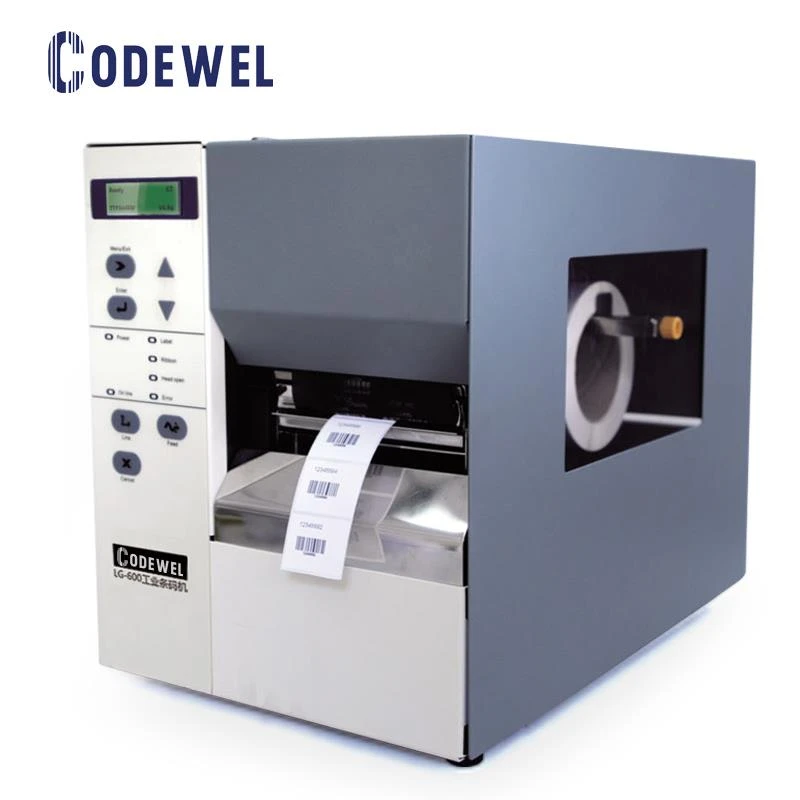

Industrial Barcode Printer 203DPI

Product Description:

China supplying industrial barcode printer 203dpi LG-600, All metal structure economical industrial printer

Printing module match various printing media.Control panel is made for quick and efficient switch.

Specifications:

Product name: industrial barcode printer 203dpi LG-600

Print Range:Max.104mm

Resolution: 203 dpi (12 dots/mm)

Print Speed:75-150mm/s

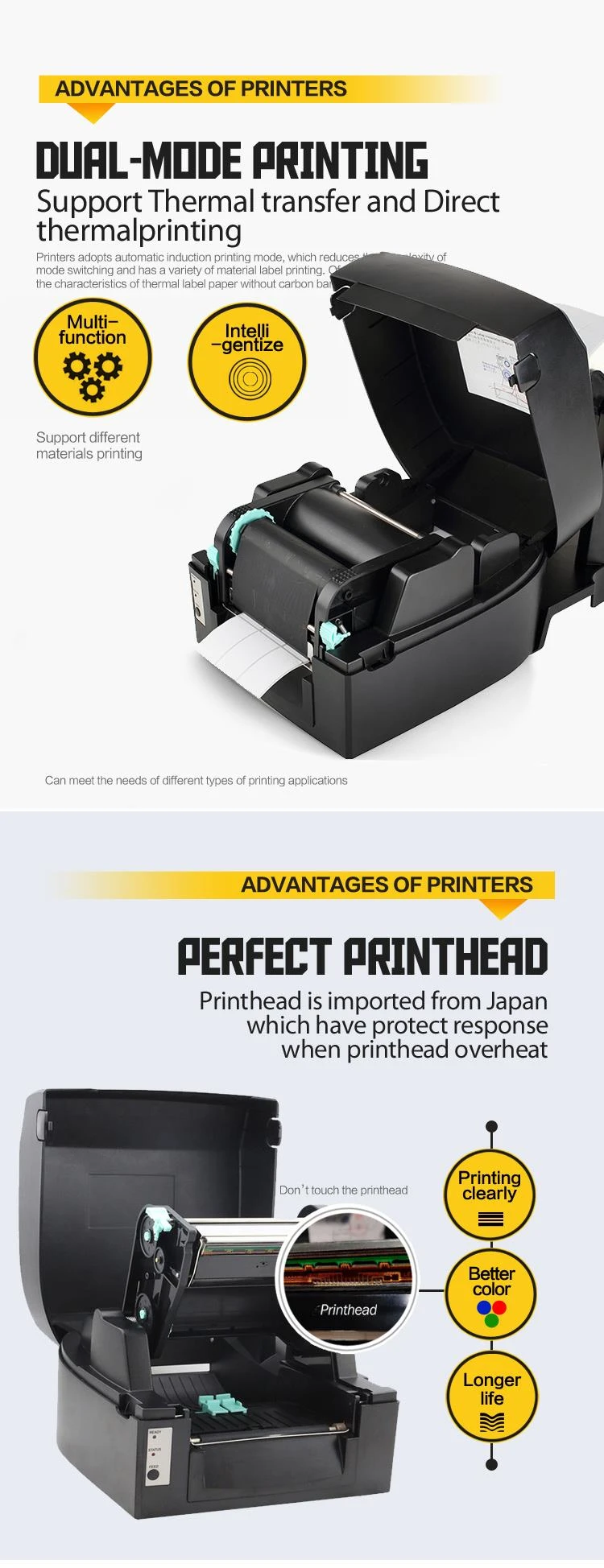

Print Method: Thermal Transfer / Direct Thermal

Dimension: 430mm*273mm*330mm

Weight: 22KG

Microprocessor: 80MHz, 32 Bit RISC

LCD Display:122(Row)*32(line) Full dot matrixdisplay in English

LED Display: Status Display Power\On line

Error status display Lable\Ribbon\Hand open\Error

Input Power:AC100V-240V 2.0Amax 50/60Hz

Commumication port: parallel:IEEE1284\ USB

Label detection：can adjust the position of transmission tag sensors

carton black label tag detaction sensor

Character repertoire：GB2312

Typeface:bold

Property：italics、hollow、Mirror

Size：Min：2.0x2.0mm

Max：16.0x16.0mm

(can be set freely)

Barcode Type:EAN-8/13, CODE39,CODE128

LGC A/E,ITF,NW7,OR

Property: To set the thickness ratio and basic size

Control Language: Chinese&English

Work Environment : Relative Humidity:5~40℃ 20~80%, No condensation

Storage Temperature: -10~40℃, Max85%, No condensation

Label Specifications:Width:25-108mm

Length:6-400mm

Size: Paper roll diameter:200mm;Paper tube minimum diameter :40mm

Print thickness:0.08-0.2mm

Type: Fold line/Die-cutter paper/Continuous paper,etc

Ribbon Specifications: Width：30-110mm

Length:300mm(internal volume or revolute)

Paper tube inner diameter:25.4mm

Divers：Windows2000/XP/2003/windows7

Industrial barcode printer 203dpi LG-600
