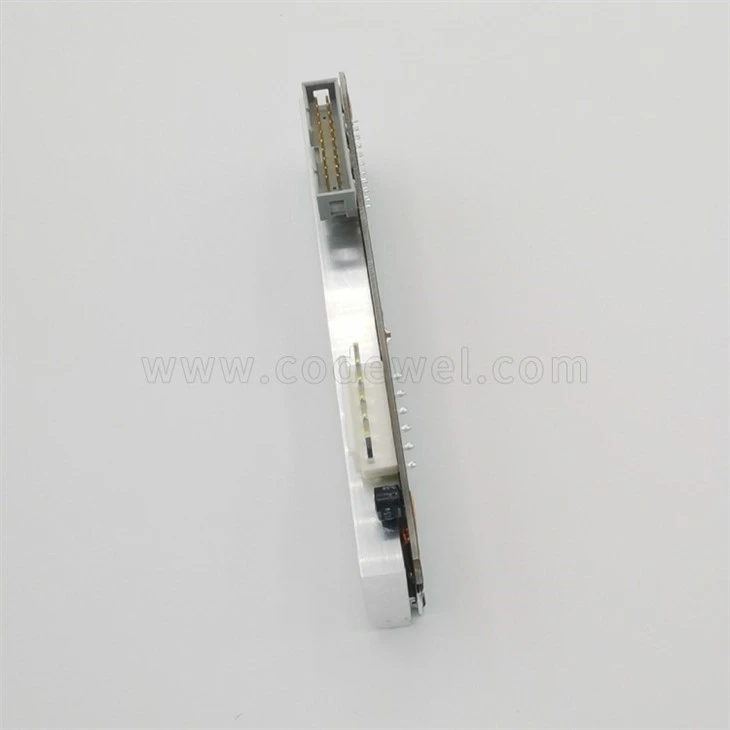

Videojet 6420 Printhead: High-Precision Thermal Transfer for Industrial Coding

1. Technical Specifications and Performance

1.1 Print Technology and Resolution

The Videojet 6420 printhead uses thermal transfer technology optimized for industrial-grade printing, eliminating the need for ink cartridges. It supports a resolution of 300 dpi (11.8 dots per millimeter), enabling sharp, scannable barcodes and text-critical for applications like pharmaceutical packaging and logistics labeling. Two print width options are available: 53 mm (2.09 inches) and 107 mm (4.21 inches), accommodating different label sizes.



1.2 Printing Speed and Durability

Speed varies by printhead width and mode:



53 mm printhead:

Intermittent mode: Up to 800 mm/second

Continuous mode: Up to 1,000 mm/second

107 mm printhead:

Intermittent mode: Up to 700 mm/second

Continuous mode: Up to 800 mm/second
Durability is robust, with a lifespan of ≥150 km of printing distance-ideal for 24/7 industrial operations.

2. Applicable Scenarios and Industry Value



2.1 High-Speed Logistics and Manufacturing

In logistics, the printhead efficiently prints shipping labels with barcodes and variable data (e.g., tracking numbers) at high speeds, supporting automated sorting systems. In manufacturing, it codes products with batch numbers, expiry dates, and serial numbers directly on packaging lines, ensuring traceability.



2.2 Pharmaceutical and Food & Beverage Industries

For pharmaceuticals, the 300 dpi resolution ensures compliance with regulatory labeling requirements (e.g., FDA-mandated barcodes). In food and beverage, it handles moisture-resistant coding on plastic films, cans, and bottles, withstanding cold chains and washdowns (IP54-rated dust and moisture resistance).

3. Maintenance and Compatibility



3.1 Routine Maintenance
To prolong lifespan:



Clean the printhead weekly with a lint-free cloth and isopropyl alcohol to remove ribbon residue.

Avoid touching the thermal elements with sharp tools; use a cleaning card for hard-to-reach areas.

Monitor print quality (e.g., faded bars) and replace the printhead if issues persist after cleaning.



3.2 Compatibility and Integration

The printhead is designed exclusively for Videojet DataFlex 6420 thermal transfer printers. It supports:



Ribbon types: Resin/wax-based ribbons, synthetic labels, and polyester films.

Interfaces: Videojet-compatible USB, Ethernet, or proprietary industrial protocols.

Operating environment: 0–45°C (32–113°F) with 24V DC power, suitable for factory floors.



Summary

The Videojet 6420 printhead combines precision (300 dpi), speed (up to 1,000 mm/second), and durability (≥150 km lifespan) to meet industrial coding demands. Its adaptability to logistics, pharmaceuticals, and food industries, paired with easy maintenance and seamless integration with Videojet systems, makes it a reliable choice for high-throughput environments.
