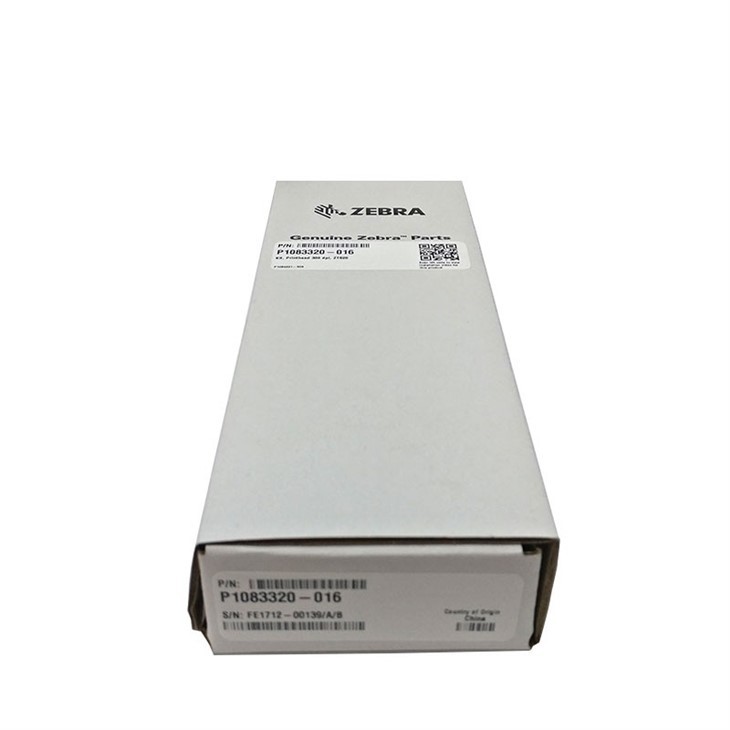

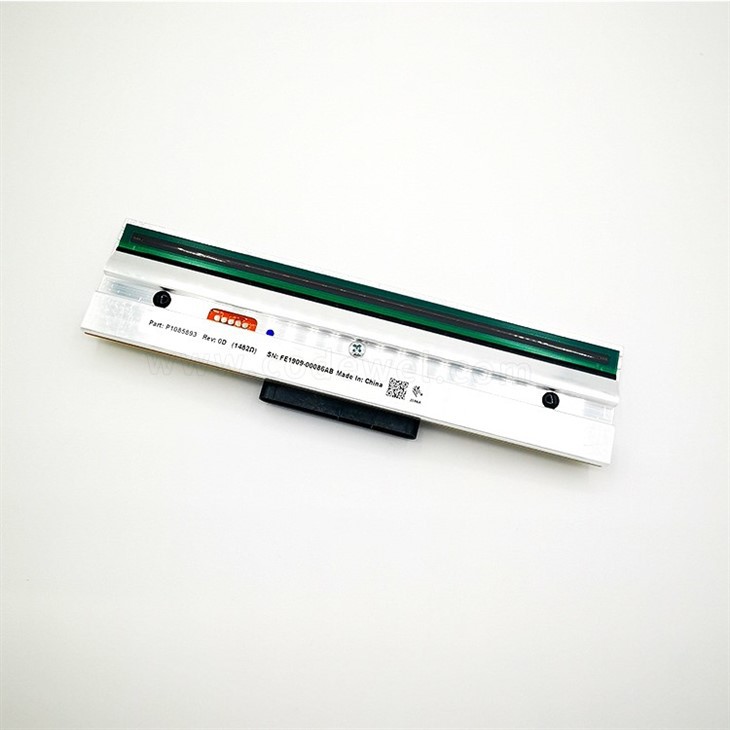

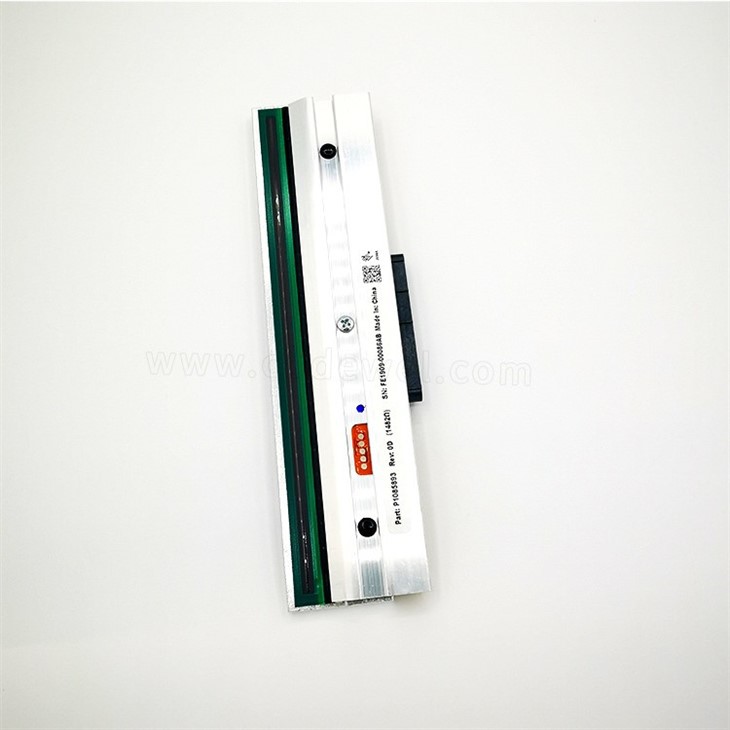

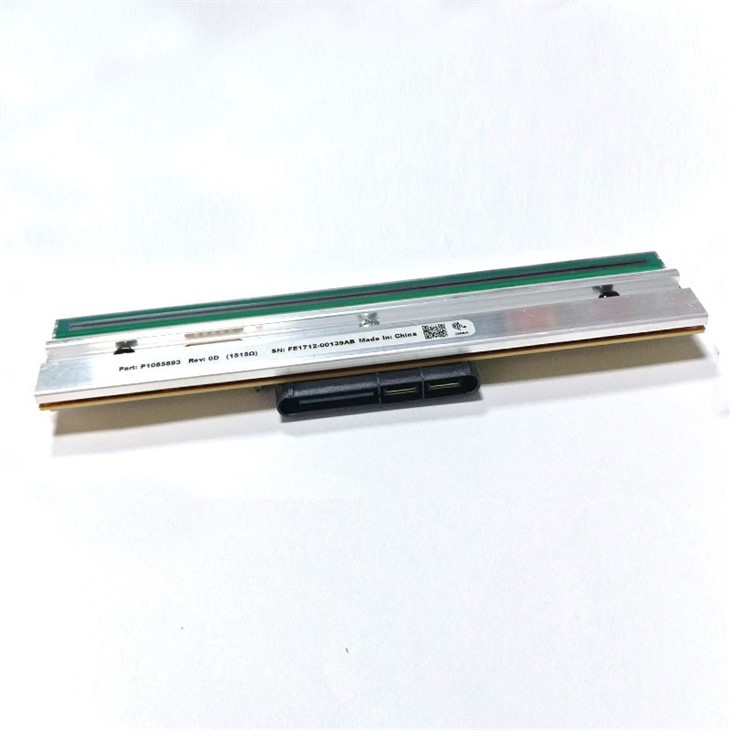

Zebra ZT620 300dpi Printhead
Brand: Zebra
OEM Part Number： ZT620 300
Printing Resolution:300 DPI
OEM Part Number： ZT620 300
Printing Resolution:300 DPI
Send Inquiry
Chat Now
Product Introduction
Product descibetion
How To Cooperate With Us?
Phone Number
+86 19157920380
sales012@codewel.com
Zebra ZT620 300dpi Printhead Specifications
| Specification | Details | Description/Advantages |
|---|---|---|
| Printhead Type | Thermal Transfer/Direct Thermal | Dual-mode support for both thermal transfer (ribbon-based) and direct thermal (ribbon-free) printing. |
| Resolution | 300dpi (12 dots/mm) | High precision for small text, fine graphics, and dense barcodes (e.g., 2D codes, GS1 symbols). |
| Print Width | 104 mm (4.09 inches) | Full-width support for standard label sizes (e.g., 4" x 6" labels). |
| Heating Elements | 1,280 dots (300dpi × 104mm) | Uniform heat distribution for consistent print quality across the entire width. |
| Voltage/Current | 24V DC (±10%), Peak: ~3.5A | Low-power design with stable performance in industrial environments. |
| Media Compatibility | Label rolls, tags, wristbands, receipts, etc. | Works with coated/unglazed papers, synthetic materials (polyester, polypropylene), and RFID inlays. |
| Alignment/Calibration | Automatic media/ribbon sensing + manual adjustment | Reduces setup time and ensures optimal print quality without user intervention. |
| Compatibility | Zebra ZT620 Series Printers | Plug-and-play replacement for factory-installed 300dpi printheads in ZT620 models. |
| Certifications | UL, cUL, CE, RoHS, FCC Class A | Compliant with global safety and environmental standards. |
| Applications | High-resolution labeling (logistics, healthcare, manufacturing, retail) | Ideal for small-font serialization, medical device labeling, and complex barcode compliance. |
