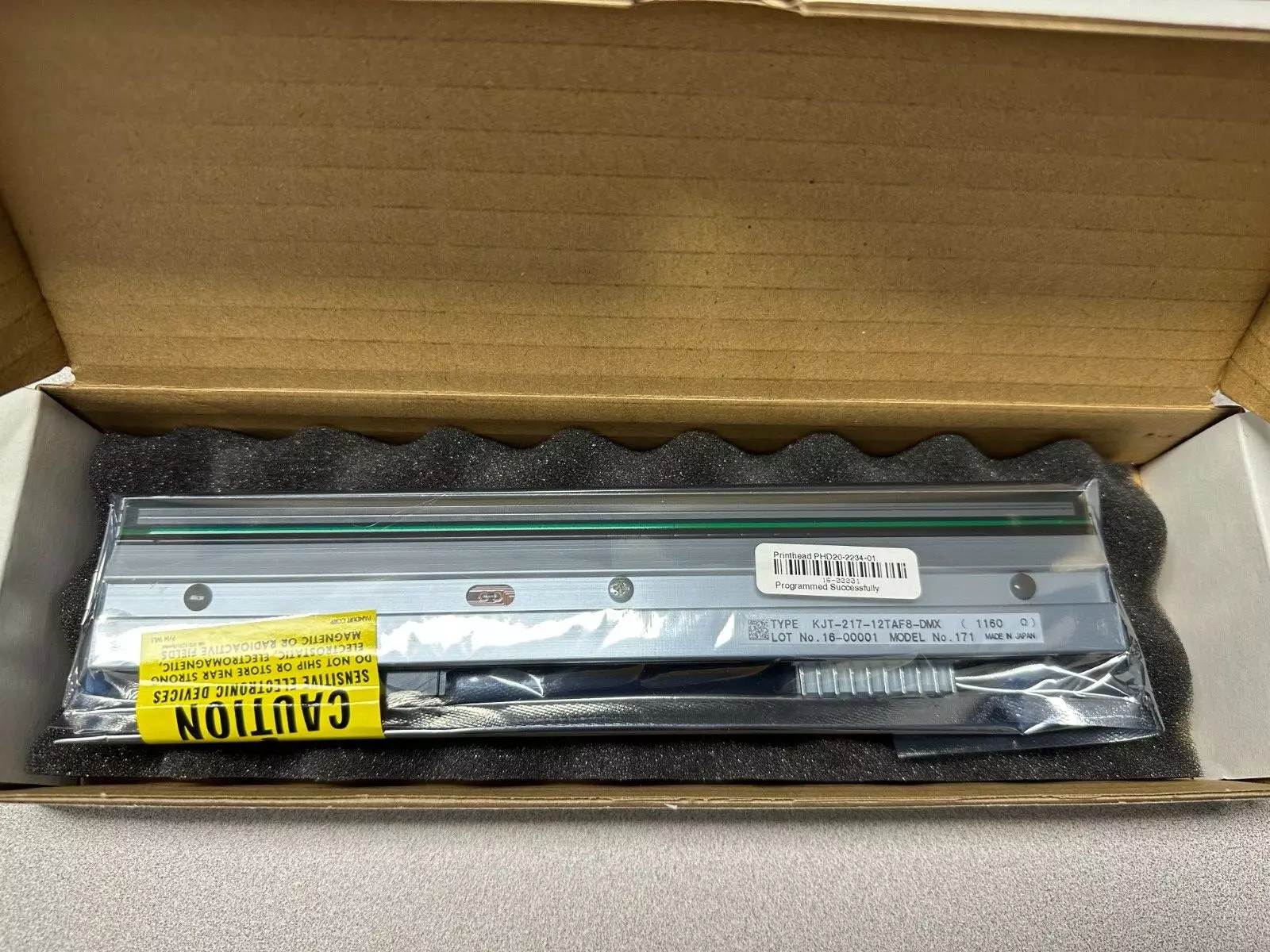

Datamax-O'Neil 300DPI PRINTHEAD For H-8308 PHD20-2234-01
DATAMAX O'Neil THERMAL PRINTER HEAD
COMPATIBILITY:for Datamax-O'Neil H-8308 Industrial Printer
RESOLUTION:300dpi
P/N:PHD20-2234-01
Send Inquiry
Chat Now
Product Introduction
| Parameter | Specification |
|---|---|
| Manufacturer Part No. | PHD20-2234-01 (Genuine OEM) |
| Compatible Printer | Datamax-O'Neil H-8308 Industrial Printer |
| Print Technology | Direct Thermal / Thermal Transfer |
| Resolution | 300 dpi (High-Density Printing) |
| Print Width | 4.09" (104mm) (Standard for H-8308 Series) |
| Print Speed | Up to 12 ips (inches per second) |
| Lifespan | 100,000–150,000 prints (Thermal Transfer Mode) |
| 80,000–120,000 prints (Direct Thermal Mode) | |
| Media Compatibility | Paper, synthetic, polyester labels (0.1–0.2mm thickness) |
| Ribbon Compatibility | Wax, wax-resin, resin ribbons (Thermal Transfer Mode) |
| Electrical Interface | 64-pin ZIF connector (OEM Standard) |
| Heating Elements | Ceramic substrate with wear-resistant coating |
| Certification | OEM Original (Includes Datamax holographic security label) |
| Warranty | 3-5 months (When installed by authorized service) |
