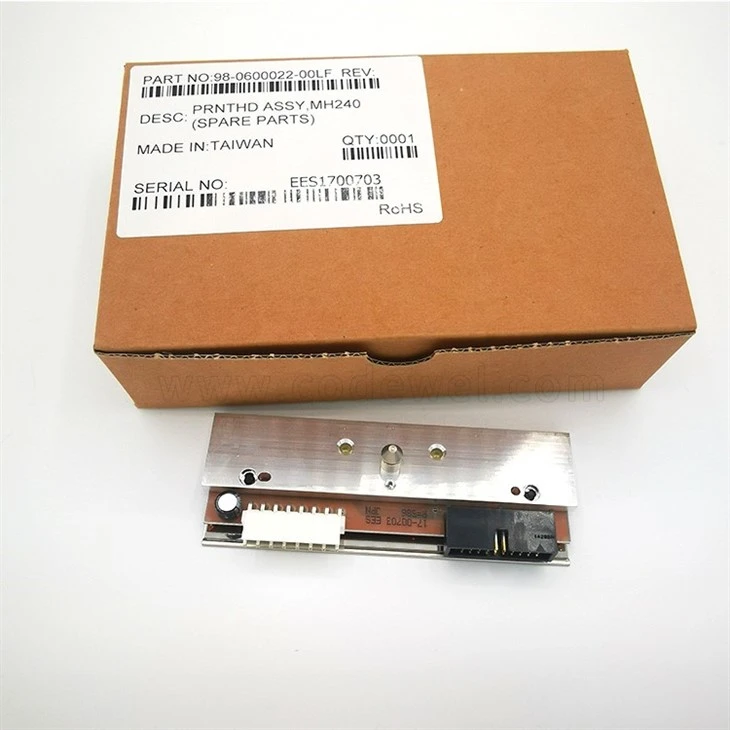

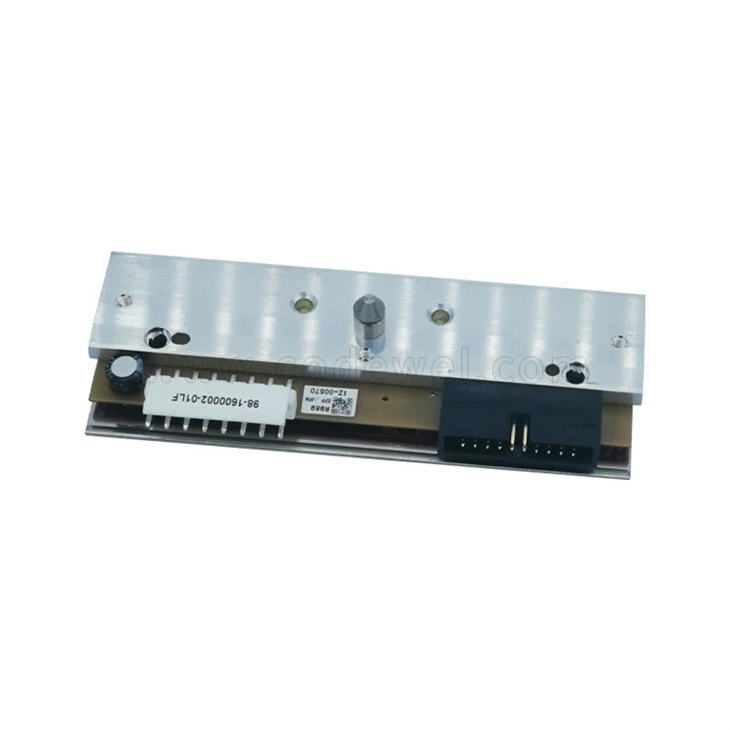

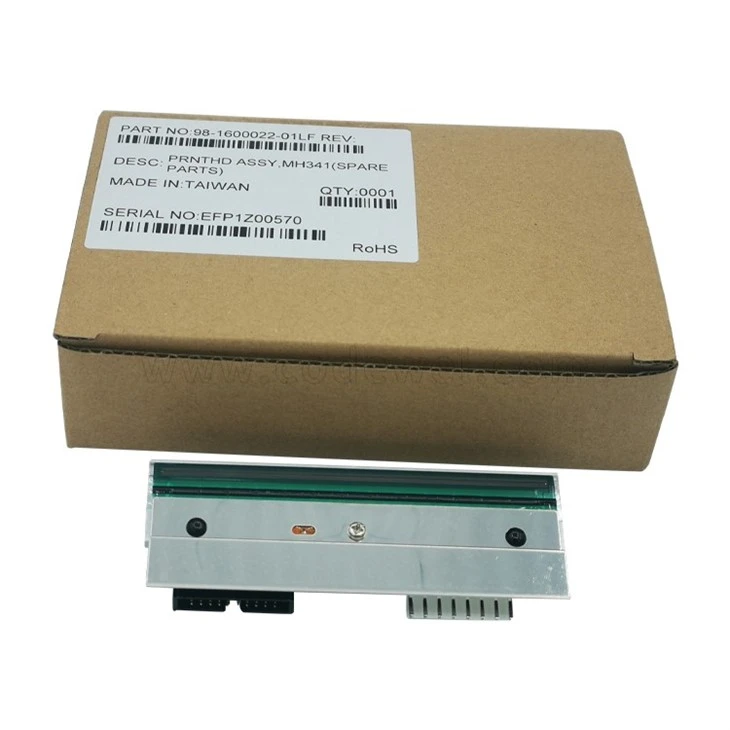

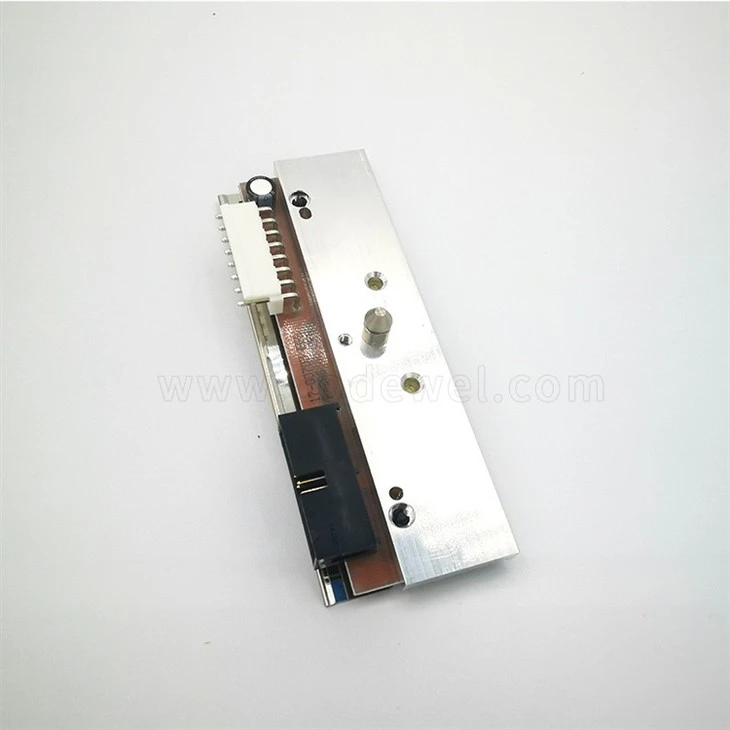

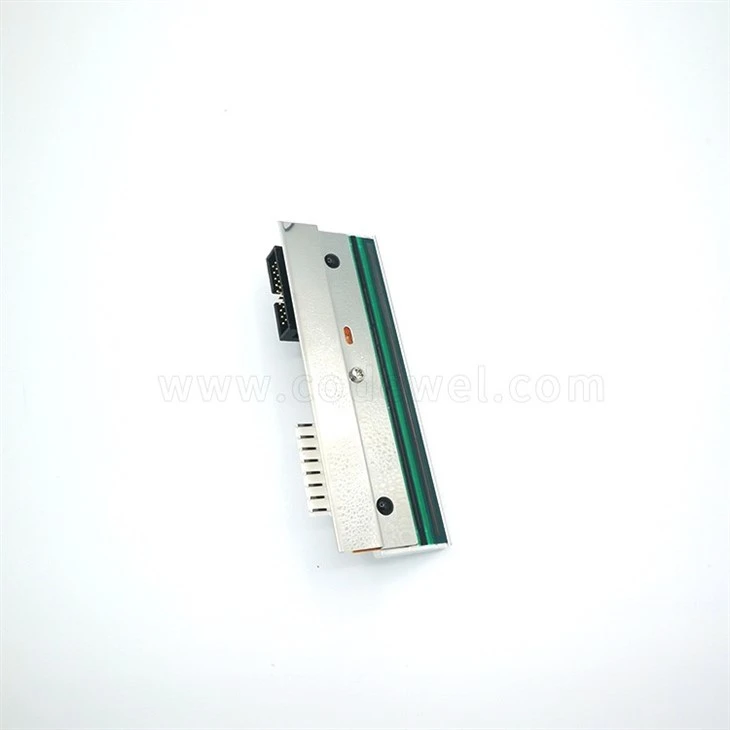

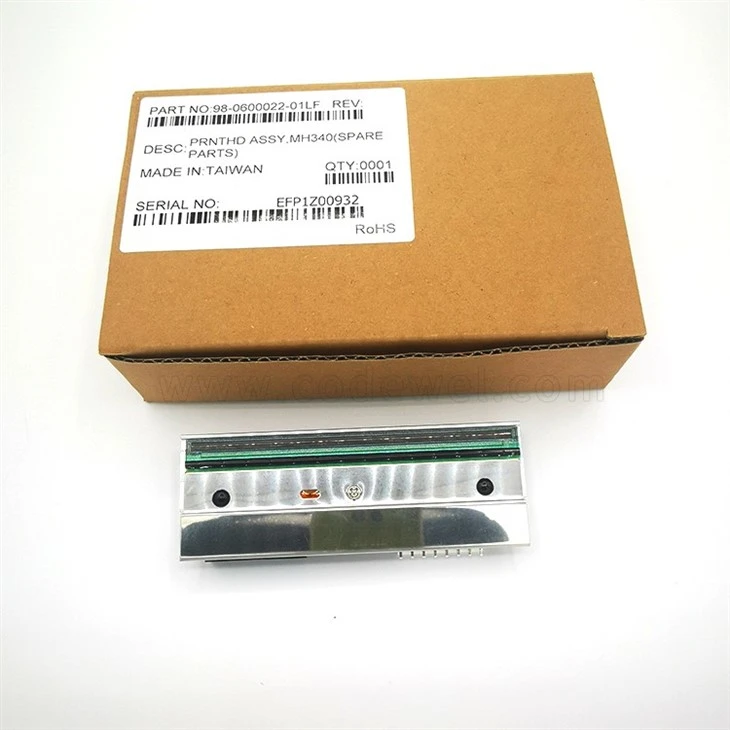

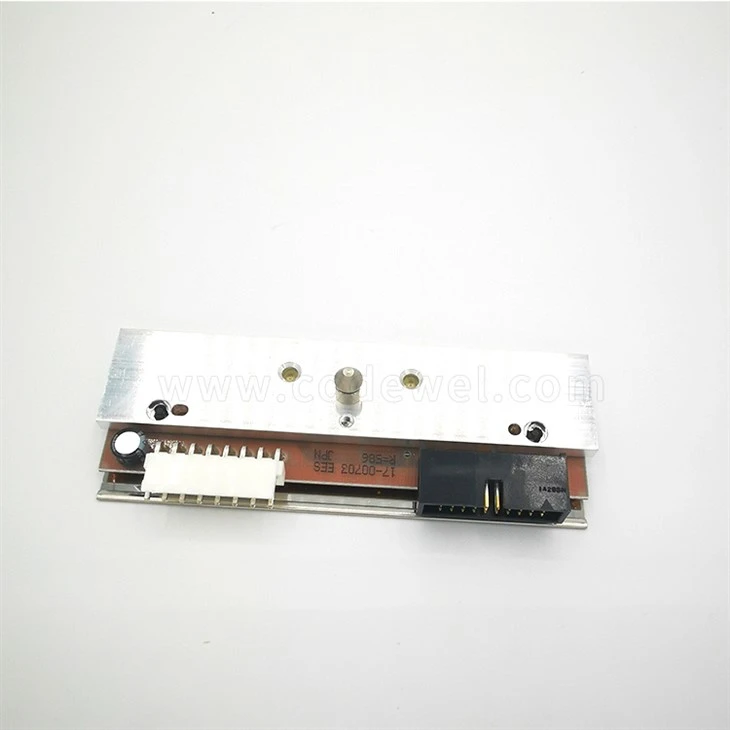

TSC MH240 /MH340/MH341 98060002201LF Printhead
TSC Printhead MH240 /MH340/MH341 98060002201LF 203dpi
Model： MB240 PHMB2400003/MB340 9806800310LF
Resolution：203dpi
condition：new original
Model： MB240 PHMB2400003/MB340 9806800310LF
Resolution：203dpi
condition：new original
Send Inquiry
Chat Now
Product Introduction
Product descibetion
How To Cooperate With Us?
Phone Number
+86 19157920380
sales012@codewel.com
TSC MH240/MH340/MH341 98060002201LF Printhead Specifications
| Feature | MH240 (98060002201LF) | MH340 (98060002201LF) | MH341 (98060002201LF) |
|---|---|---|---|
| Printer Compatibility | TSC MH240, Alpha-4R | TSC MH340, Alpha-6R | TSC MH341, Alpha-6R Wide |
| Print Technology | Thermal Transfer/Direct Thermal | Thermal Transfer/Direct Thermal | Thermal Transfer/Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) | 300 DPI (12 dots/mm) | 300 DPI (12 dots/mm) |
| Print Width | 4" (102 mm) | 4" (102 mm) | 6" (152 mm) |
| Heating Elements | 800 dots | 1200 dots | 1800 dots |
| Life Expectancy | 70 km (203 DPI) | 50 km (300 DPI) | 50 km (300 DPI) |
| Voltage | 24V DC | 24V DC | 24V DC |
| Interface | FFC (Flat Flexible Cable) | FFC (Flat Flexible Cable) | FFC (Flat Flexible Cable) |
| Material | Ceramic-coated resistor | Ceramic-coated resistor | Ceramic-coated resistor |
| Key Features | - High durability - Auto-calibration - Low energy consumption |
- Ultra-high precision - Extended print width (MH341) - Anti-static design |
- Wide-format support - Fast heat-up technology - Compatible with harsh environments |
| Applications | General labeling, retail, logistics | High-resolution labels, healthcare, industrial barcodes | Wide labels, pallet tags, automotive/VIN labeling |
| Part Number | 98060002201LF | 98060002201LF | 98060002201LF |
Key Advantages
Modular Design: Easy user-replaceable for minimal downtime.
Temperature Control: Precise heat regulation for consistent print quality on various media (e.g., paper, synthetic labels, RFID tags).
Typical Use Cases
Logistics: Shipping labels, pallet tags, barcode tracking.
Retail: Price tags, shelf labels, clothing care tags.
Industrial: Asset labels, chemical drum markings, (up to 300°C with thermal transfer ribbons).
Healthcare: Patient wristbands, specimen labels, pharmaceutical packaging.
