High Quality Coated Matt Thermal Transfer Jumbo Label
video

High Quality Coated Matt Thermal Transfer Jumbo Label


products : Coated Matt thermal transfer label

size : Customization

usage :for thermal printer
Send Inquiry
Chat Now
Product Introduction

high quality Coated Matt thermal transfer jumbo label


1、technical specifications for Coated Matt thermal transfer jumbo label


Product:

A premium thermal transfer label with a quick tack permanent adhesive, designed for high-speed thermal transfer printing, compatible with most thermal printers.


Face:A premium white matte coated facestock, designed for high-speed thermal transfer printing.

Test PropertyTypical Values Test Method
Base Weight g/m268+/-5% GB/T451.2
Caliper um70+/- 3GB/T451.3
Whiteness %90+/-2GB/T7974
Smoothness (s)≥600 GB/T456
Tear (mN) MD≥240 CD≥260GB/T455
Tensile(N) MD≥50 CD≥45 GB/T1040.3-2006


Adhesive:

A high tack ,rubber-based adhesive that performs well in normal temperature applications. has excellent tack and ultimate adhesion to a variety of surfaces including polystyrene, polypropylene, polyethylene, paper and corrugate.



Test PropertyTypical ValuesTest Method
Initial adhesion(N)15.0~20.0GB/T 31125-2014
180 Peel adhesion (N/CM) 7~8 GB/T 2792
Minimum Application temp. 0℃
Service ranges -55℃ ~ 65℃



Note: Not suitable for plasticized PVC


Liner:

A white Supercalendered glassine with good intensity and transparency , excellent for identification by printer.


Application and use:

Our thermal transfer label is for longer term applications requiring a high print quality, compatible with a wide

range of thermal transfer ribbons, including wax, resin and wax-resin. Shelf life: one year when stored at 20℃ and 50% R.H.


Base Weight g/m2 58±2 GB/T451.2-2002

Caliper (um):47±1.5  GB/T451.3

Transmittance %:≥30 GB/T7974-2002

Smoothness (s):≥1000 GB/T 2410-2008

Tear (mN):MD≥250 CD≥300 GB/T455-2002

Tensile(N):MD≥90 CD≥50 GB/T1040.3-2006



2、application of Coated Matt thermal transfer jumbo label


it is applicable for electronics, weighing scale in supermarkets, medical and pharmaceutical substances, chemical laboratory, logistic and ex-press etc.

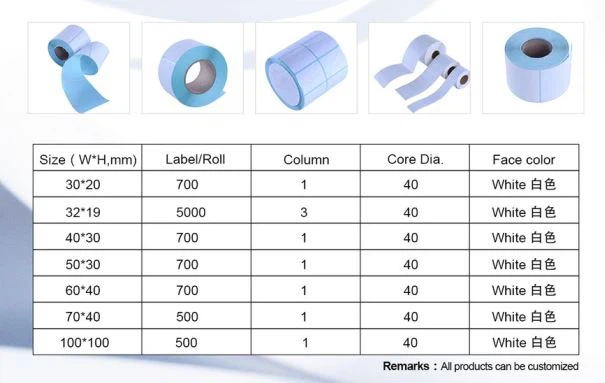

we can customize the size according to your needs

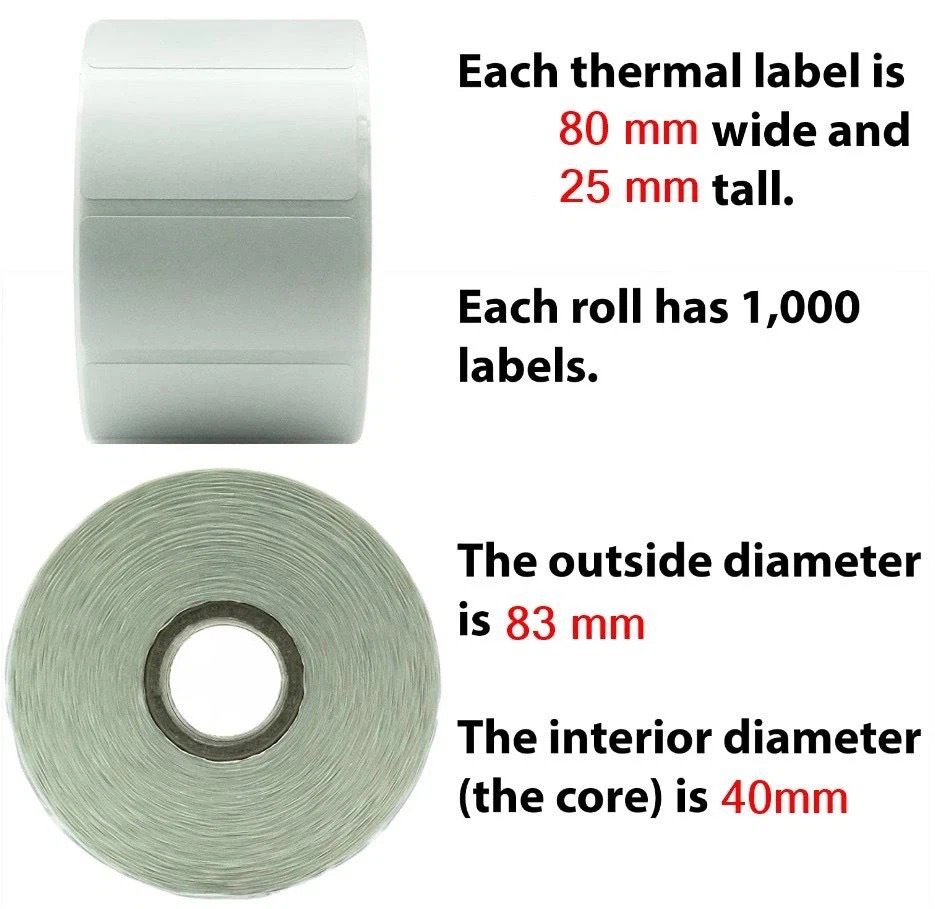

paper roll (2)



Hot Tags: high quality coated matt thermal transfer jumbo label, China, manufacturers, suppliers, factory, buy, wholesale, price, cheap, free sample, made in China
