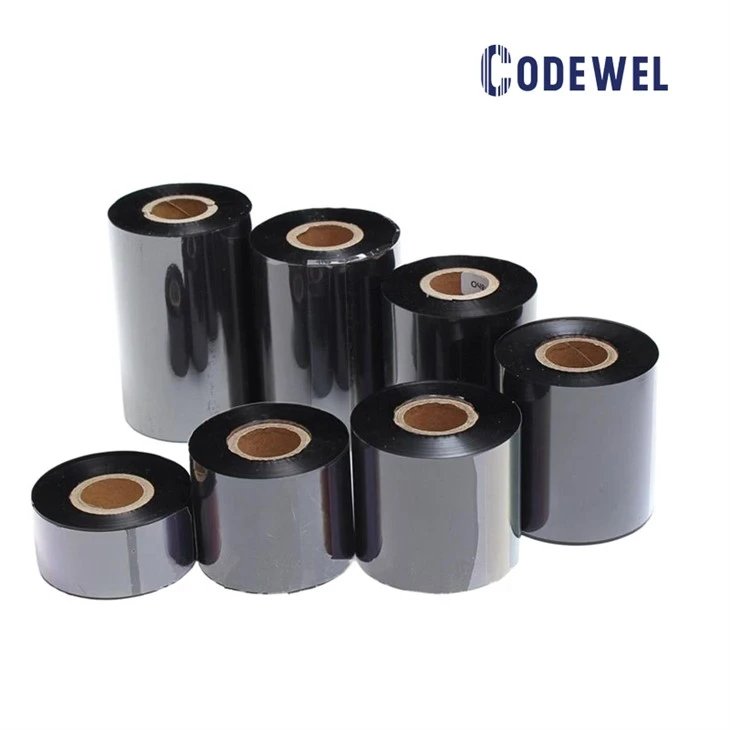

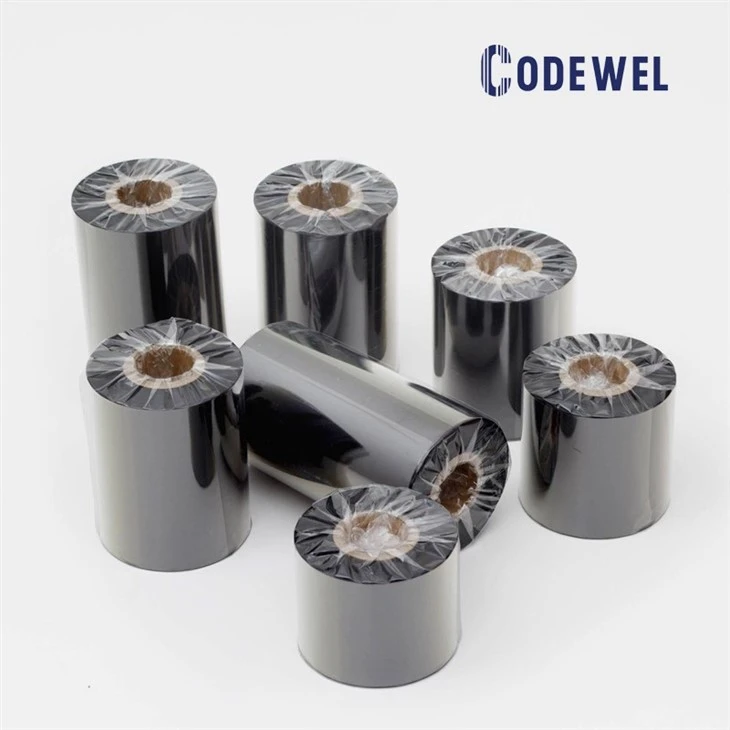

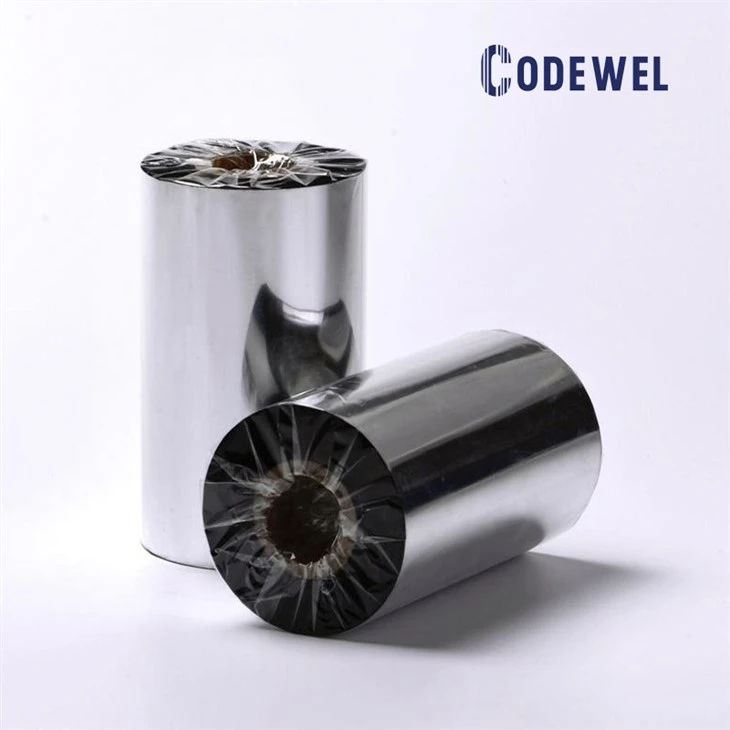

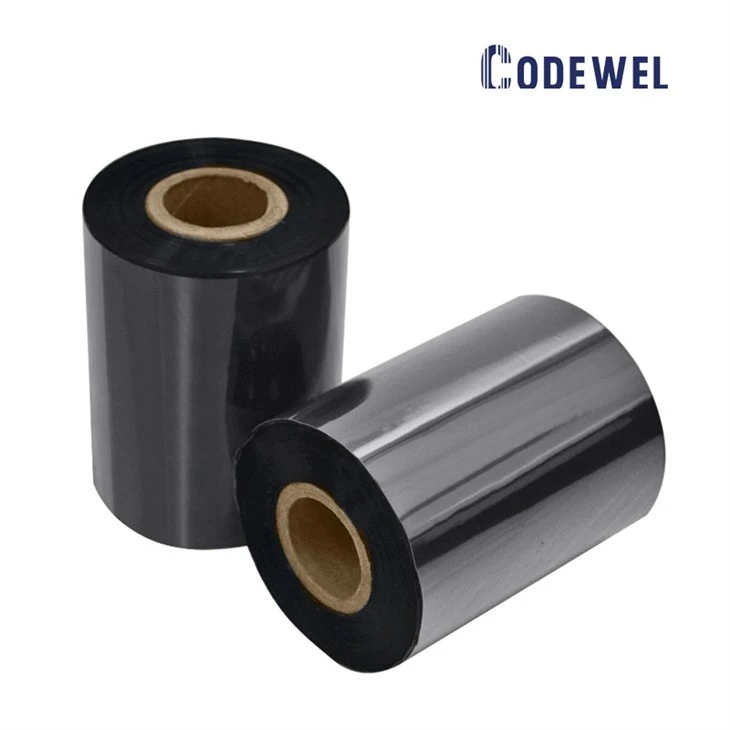

Thermal Transfer Ribbon：Wax，Wax Resin，Resin

Zebra Thermal Transfer Ribbon Classification and Features Table

Type	Suitable Label Materials	Primary Applications	Key Advantages	Color Options	Certifications & Standards	Environment	Print Quality	Durability
Wax Ribbon	Plain paper, coated paper	Logistics labels, retail tags, warehouse management	Low cost, fast printing speed, ideal for short-term use	Mainly black	UL Recognized, CSA	Indoor, mild conditions	Moderate	Not resistant to chemicals or harsh environments
Resin Ribbon	Synthetic materials (polyester, polypropylene)	Industrial labels, weather-resistant tags, medical device labels	Heat/chemical resistance, waterproof, scratch-resistant	Black/color options	UL Recognized, CSA	Harsh environments (high heat, moisture)	High resolution	Extreme (long-term durability)
Wax-Resin Ribbon	Semi-synthetic materials (coated synthetic paper, specialty paper)	Food packaging, outdoor asset tracking, chemical labels	Balances cost and performance, moisture-resistant, abrasion-resistant	Mainly black	UL Recognized, CSA	Moderate harsh conditions	High	High (better than wax, less than resin)
Multi-Color Wax-Resin Ribbon	Synthetic or semi-synthetic adhesive labels	Color-coded labels, brand packaging, hazard warnings	Supports color printing (red, blue, green, etc.), enhances visual identification	Multiple colors	UL Recognized, CSA	Color-critical environments	Moderate to high	Varies by color (some colors may have lower weather resistance)



Extended Information

Application Scenarios

Wax Ribbon: Short-term retail price tags, shipping labels.

Resin Ribbon: Industrial equipment labels, chemical container tags, UV-resistant outdoor tracking.

Wax-Resin Ribbon: Frozen food labels, humid warehouse pallet tags.

Multi-Color Ribbon: Medical specimen sorting, hazard warnings (red/yellow), promotional branding.

Chemical Resistance

Resin ribbons resist alcohol, oils, and mild acids; wax ribbons dissolve easily in solvents.

Printer Compatibility

Designed exclusively for Zebra thermal transfer printers (e.g., ZT, Xi series). Match printhead temperature and speed settings.

Certifications

UL/CSA certifications apply only when used with Zebra-approved labels (e.g., Zebra TrueMark labels).

Color vs. Durability Trade-offs

Black offers the highest durability in multi-color ribbons; bright colors (e.g., yellow) may reduce scratch resistance.

Storage Requirements

Unopened ribbons: Store in dry, dark conditions (recommended: 30-60% humidity, 15-25°C).

Technical Specifications Example

Parameter	Wax Ribbon	Resin Ribbon	Wax-Resin Ribbon	Multi-Color Wax-Resin
Temperature Resistance	-20°C~60°C	-40°C~150°C	-30°C~90°C	-20°C~80°C
Minimum Print Resolution	203dpi	300dpi+	300dpi	203dpi
Typical Roll Length	300-450m	150-300m	300m	200-300m
