Mini Slitter Rewinder

Products Description

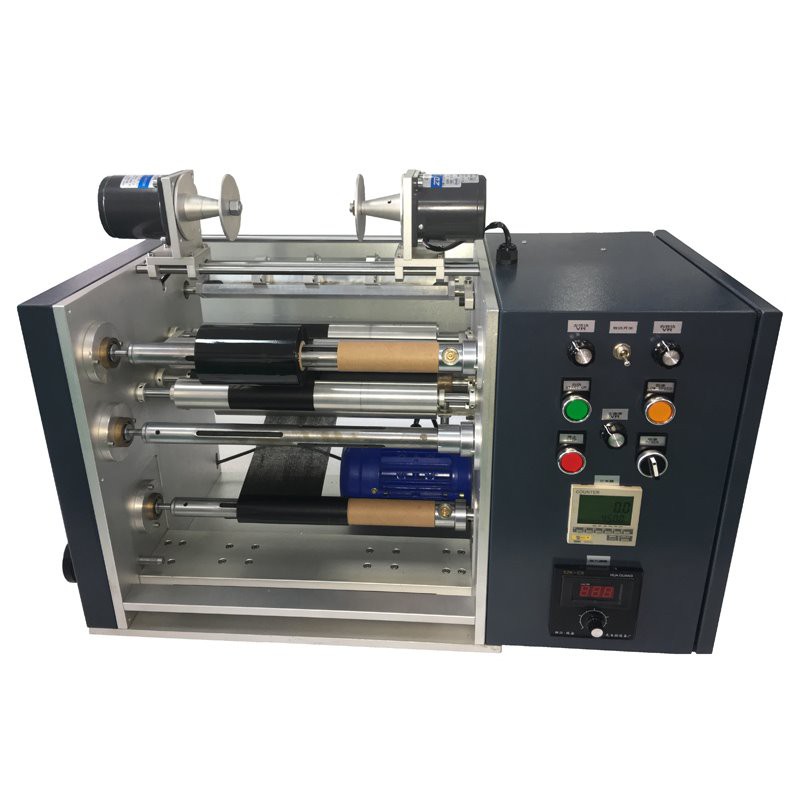

The instruction of RM650 mini slitter rewinder

This operation manual of mini slitter rewinder  is designed to help relevant personnel understand the equipment, correct operation and daily maintenance can make the machine to maintain good performance. Only by understanding the performance of the machine and mastering the correct operation method, can the machine failure be effectively avoided or removed in time. Therefore, when replacing or adding operators, the new operators should read this manual carefully. We place special emphasis on the safety during the operation of the machine. Please be sure to check the chapter of safety measures in this manual before starting the device. It can make the operator know the dangerous points and matters needing attention during the operation of the machine. If you have any questions, or if there is a malfunction of the machine and the person concerned cannot solve it, please contact us.

A: Unwinding shaft: install the parent roll that needs rewinding and slitting on this shaft (air expansion type)

B: The left and right adjustment handles of the unwinding shaft can adjust the left and right positions of the unwinding shaft during stop and operation

C: Knife rest adjustment handle, adjust the angle of the slitting knife seat.

D: Slitting knife: Magnet type slitting knife holder

E: Upper reel: 1" and 0.5" inflatable reel can be placed

F: Lower reel: 1" and 0.5" inflatable reel can be placed

G: Collecting waste motor: when there is slitting, collect waste edges on both sides H: Main drive shaft and rubber roller press shaft

3.1 Safety items and danger signs

This equipment can only be operated and maintained by trained personnel, so everyone involved in machine startup, operation, inspection, fault tracing and maintenance must first read and understand this chapter.

The operator is responsible for maintaining the normal operation of the machine, and if there is any abnormality in the machine, promptly report to the relevant personnel. In addition, the operator must ensure that the work site is tidy and free from obstructions or obstruction of the aisle.

Do not modify, disassemble or terminate the function of the safety features on the machine without authorization. Removing or opening the machine cover to expose the running parts may cause serious injury or death.

When inexperienced auxiliary personnel are required to participate in the work of the machine, all potential hazards must be pointed out and let them pay attention.

When servicing the machine, please refer to the instructions on the switch status of each button and soft key, and follow the steps for maintenance. In an emergency, you can use an emergency stop.

The following signs are attached to the appropriate positions of the machine as needed, and the relevant staff must read them carefully and understand their meanings.
