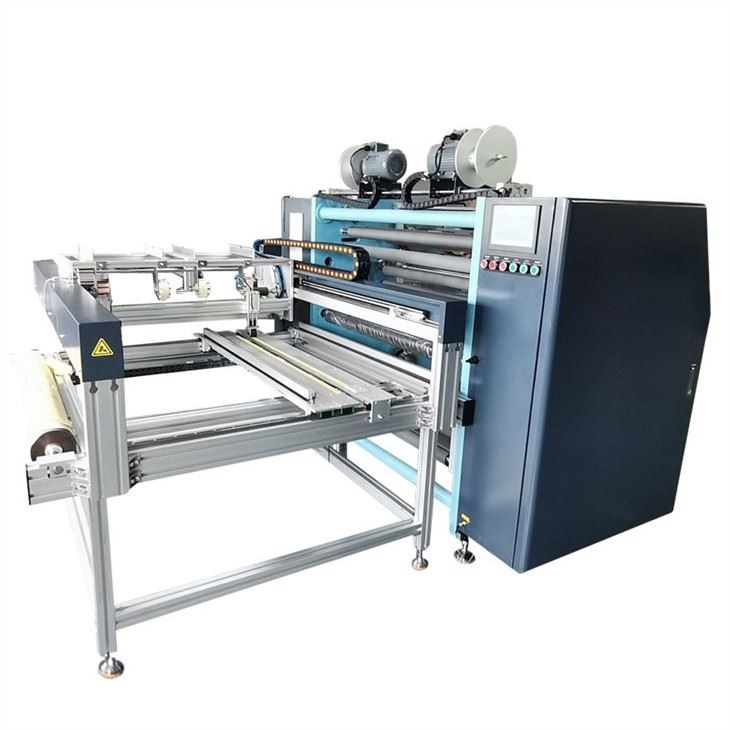

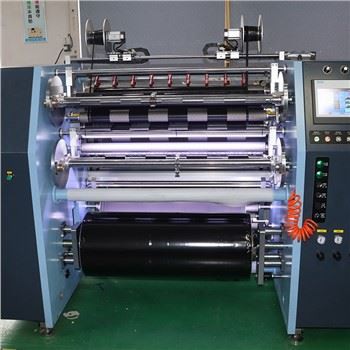

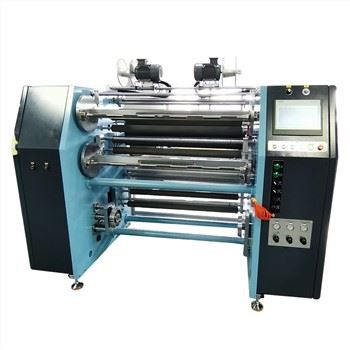

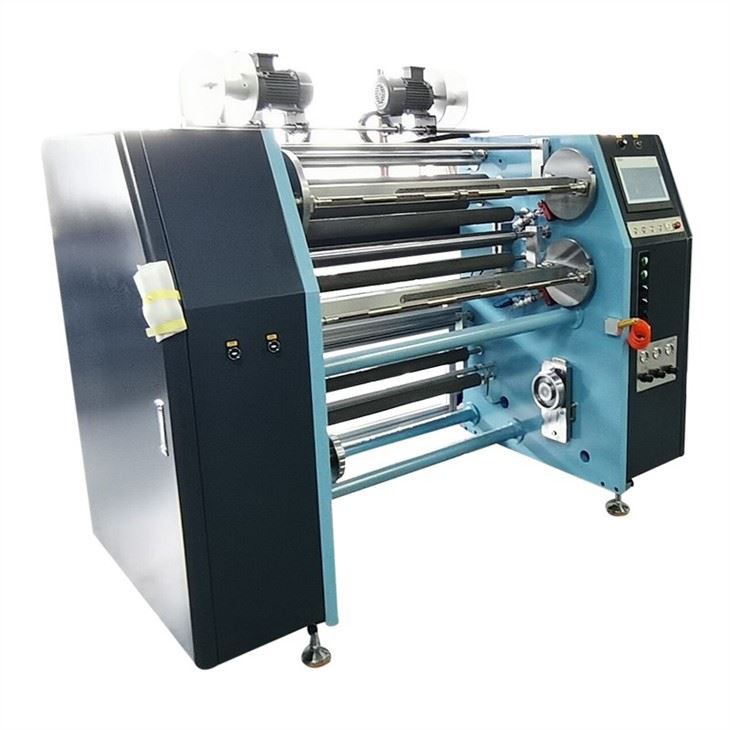

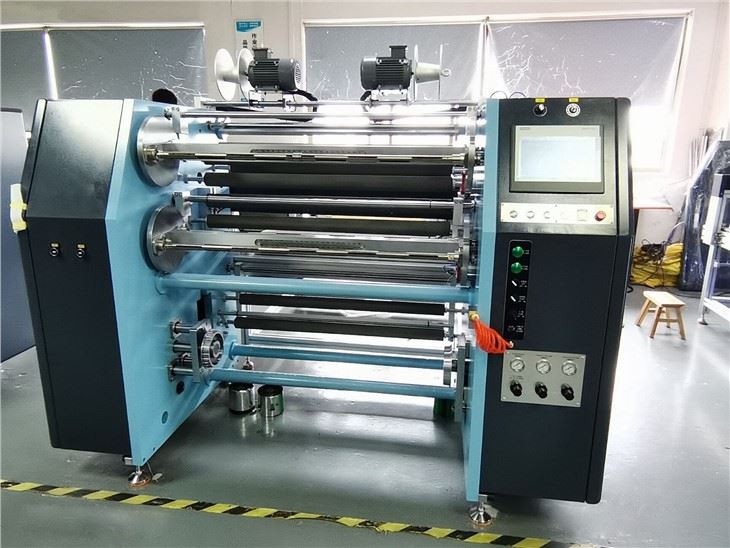

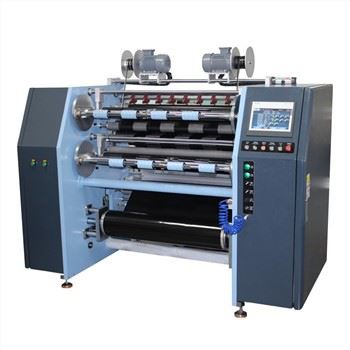

Slitter Rewinder Machine

Technical reference:
JUMBLE
Roll width:650~1010mm
Roll diameter:max700mm
Core diameter: 6"
REWINDING
Roll width:150mm
Core diameter:1/2,"1"
SLITTING
Max Speed: 380m/min
Cutting thickness∶ 4~20μm
POWER/AIR
Power:two-phase 220/50~60HZ
Maximum power:7kw
Air pressure: 0.6~0.8mm
APPEARANCE SIZE
Size:2760*2050*1760mm

Send Inquiry

Chat Now

Product Introduction

	Points for attention
Jumbo	The unwinding film is wound up, the unwinding film rotates, and the unwinding frame moves horizontally. Press the emergency stop button when loading a large volume.
Roller	Roll rotation
Slitting	Adjust the cutter, wear the film, replace the blade, and turn off the power supply of the machine
Roll up	Roll up film rotation, roll unloading, roll operation
Main press roller	Open the main pressure roller when threading the film

Installation position and handling instructions

The slitter rewinder machine needs to have at least 500mm between its moving parts and the region where the operator can move. The machine needs the following in terms of both power and the environment:

Machine placement height: no more than 1000m above the horizontal

Maximum 35 °C for the machine's ambient temperature

Control box: max. + 45 ℃

Maximum relative humidity: 80%

Voltage: 3P/380V & 2P/220V

Frequency: 50 / 60Hz

Voltage for control: 220VAC

220VAC and 24VDC solenoid valve

ST580/5kVA/ST680/690/7KAV for power

Clean compressed air at 0.6 MPa with a gas consumption of roughly 5 Nm3 per hour is required.

Storage of the machine body and its accessories is required in a sealed space with a temperature range of 5 to 40 °C.

Keep moisture away from the device.
