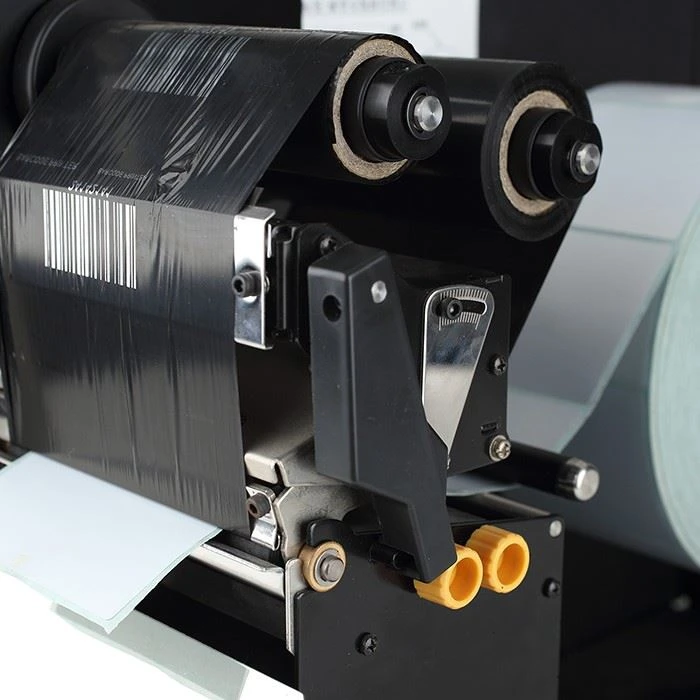

Leden Industrial Printer LG600 203 Dpi
products : Leden Industrial Printer
print method:Thermal Transfer / Direct Thermal
Software :LEDEN LABEL
Leden Industrial Printer LG600 203 Dpi
specifications of LG600 printer
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 6IPS(150 mm/s) |
| Print Width | 104mm(4.09") |
| Print Length | Min.0.24"(6 mm); Max.15.75"(400 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 6MB Flash; 4MB SDRAM |
| Sensor Type | Adjustable label and reflective sensors |
| Media | Continuous form,gap labels,black mark sensing,and punched hole,label length set by auto sensing or programming Width:1"(25.4 mm) Min.4.64"(118 mm) Max. Thickness:0.0024"(0.06 mm) Min. - 0.01"(0.25 mm) Max. Label Roll Diameter:Max.8"(200 mm) Core Diameter: 1.5"(38.1 mm), 3"(76.2 mm) |
| Ribbon | Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) |
| Printer Language | APL |
| Software | LEDEN LABEL |
| Resident Fonts | Bitmap fonts 0,90°,180°,270° rotatable, single characters 0,90°,180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 0,90°,180°,270° rotatable |
| Download Fonts | Bitmap fonts 0,90°,180°,270°rotatable, single characters 0,90°,180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 0,90°,180°,270° rotatable |
| Barcodes | 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, |
| Code Pages | |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB 2.0 (B-Type)，LPT |
| Control Panel | Two groups of two-color LED indicator:Power,On line,Label,Ribbon,Head open,Error;Calibration button:Up and Down;Control keys:Menu/Exit,Enter,Feed,Pause,Cancal |
| Real Time Clock | |
| Power | Auto Switching 100-240 V AC, 50-60 Hz. |
| Environment | Operation Temperature 41°F to 104°F (5°C to 40°C) Storage Temperature -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation 30 – 85 %, non-condensing. Storage 10 - 90 %, non-condensing. |
| Agency Approvals | CE |
| Dimension | 430mm*273mm*330mm |
| Weight | 20kg |
| Options | label rewinder,Cutter |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. |
FAQ
Q:What shipping methods do you provide and how long can I get the goods?
A:DHL / EMS/UPS / TNT / FEDEX as requested, 3-6 days
Q:How about after-sale service?
A:1 year warranty on all products, warranty period starts from the date of BL
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q:Do you provide sample?
A:Yes, sample is available.
Q:What about lead time?
A:Sample, 1-2 days
Bulk: 3-5 days (100-300pcs), 5-7 days(300-500pcs), 7-10 days(500-1000pcs)
Q:Where can I download driver since my computer has no CD disk?
A:Please contact with us and we will send you the software that can be
fixed in one key.
Q:What is your payment?
A:We accept TT,LC,paypal, credit card and western union etc.
