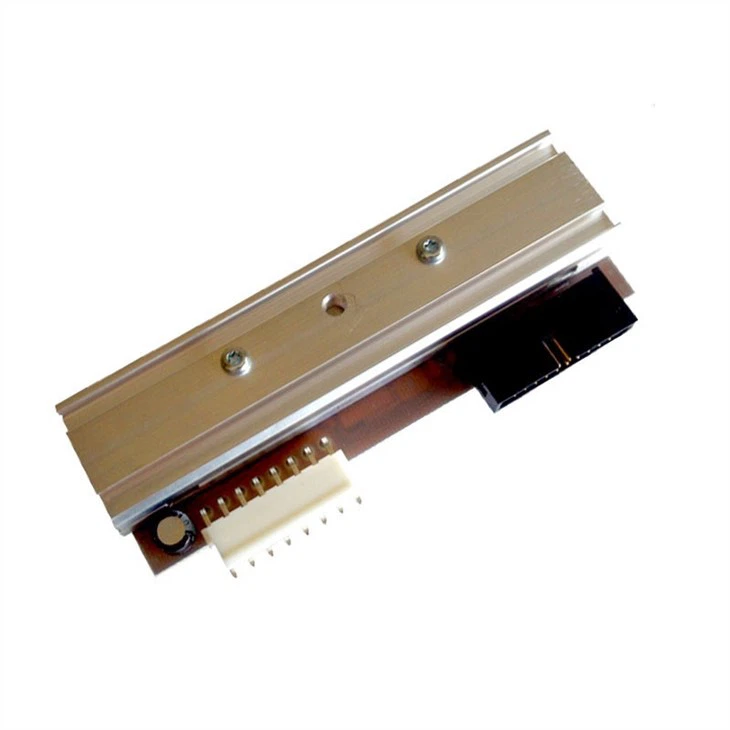

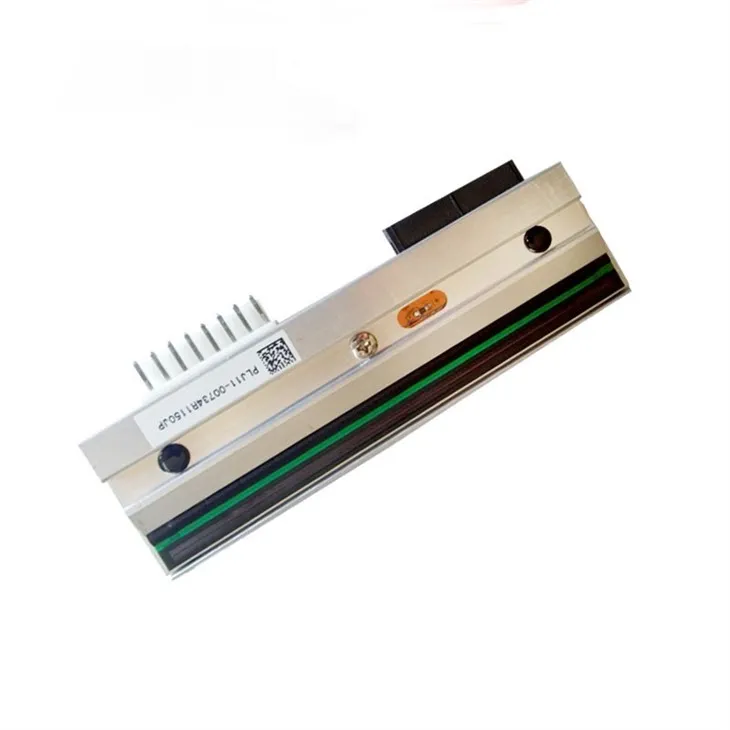

Original Avery5.4 203 Dpi Other Thermal Printer Printhead

Original Avery AP5.4 203 dpi other thermal printer printhead

The printhead is sensitive to static electricity, which can damage the printhead or reduce its life.

Ground yourself by touching metal, such as the printer's metal base, before touching the printhead.

 To replace the printhead:

1. Turn off the printer.

2. Open the cover.

3. Unlock the printhead by turning the retaining latch.

4. Press forward and down on the two latches on top of the printhead assembly as shown. The printhead will drop out.

5. Lift the printhead assembly using the printhead tab and push back until the printhead assembly clicks into place.

6. Carefully unplug the cable from the printhead as shown. The printhead is sensitive to static electricity, which can damage the printhead or reduce its life. Ground yourself by touching some metal, such as the printer's metal base, before touching the printhead.

7. Carefully plug the cable into the new printhead.

8. Align the new printhead with the tabs.

9. Snap the printhead into place.

Note: Make sure the printhead cable does not touch the ribbon roll.

10. Clean the new printhead with a cotton swab dipped in isopropyl alcohol to remove any salt or oil left from handling.

11. Let the printhead dry and reload your supplies.

12. Push down on the printhead assembly to lock it in place.

13. Close the cover.

14. Turn on the printer and press Feed/Cut to position the supply.

Our Service & FAQ

Q . How to be our  agent  in your country?

A. Please contact sales person to talk a bit more about your company information , it will be great honor for us to have you as our agent.

Q . How to  contact us?

A.Send us an email jason@codewel.com

Q:What shipping methods do you provide and how long can I get the goods?

A:DHL / EMS/UPS / TNT / FEDEX as requested, 3-6 days

Q:How about after-sale service?

 A:2 year warranty on all products, warranty period starts from the date of BL date.

Q:Can we have our logo or company name to be printed on the product or package?

A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
