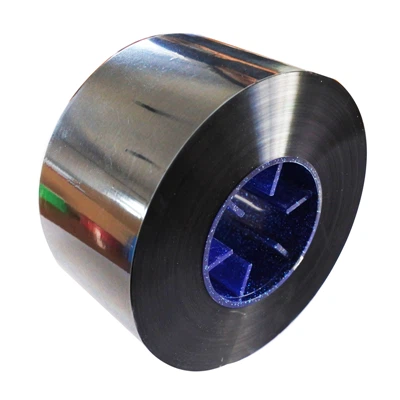

CW515 Premium Wax Thermal Transfer Ribbon
Product Name:Wax Ribbon
Material:Premium Wax
Color:Black or Custom
Size:110mm*300m or custom
Model:CW515
CW515 Premium Wax Ribbon
Excellent Substrate Compatibility | Excellent Scratch Resistance | High Sensitivity & Definition
CW515 is an economical enhanced wax ribbon engineered for demanding label-printing applications where cost, print quality and abrasion resistance must all be balanced. It delivers outstanding blackness, crisp barcodes and low energy consumption - making it an excellent choice for logistics, retail, packaging and general-purpose labeling.
Compatible Label Materials
- Uncoated paper(Vellum, Wrinting Paper)
- Coated Paper
- Synthetic Paper
- Film labels such as PP, PET, PE, BOPP, and PVC
Product Parameters
| Material | Premium Wax | Color | Black or custom |
| Ink side | IN or OUT | Core size | 1 inch or 1/2 inch |
| Basic Length | 30m,74m, 90m,100m,300m,450m,600m,650m or customized | Basic Width | 30/40/50/60/70/80/90/100/110mm or customized |
| Carrier's Thickness | 4.5 μm | Ribbon's Thickness | 8.1 ± 0.3 μm |
| Ink Melting Point | 70 ± 0.3 ℃ | Color Density | 2.2 ODR |
| Heat Resistance | 100℃ | Scratch Resistance | 60 |
| Solvent Resistance | 0 | Label Applicability | 100 |
| Printing Speed | 0-8 IPS | Usage Condition | 5~35℃,20%~85%RH |
| Contact to get free sample ! | |||
More Details
What this means in practice
CW515 produces dark, high-definition text and barcodes that scan reliably. Its low energy transfer makes it well suited for thermal transfer printers working at moderate speeds (up to 8 ips) and helps reduce wear on printheads. The combination of substrate compatibility and abrasion resistance reduces misprints, rework and warranty issues - lowering your total operational cost.
Key Advantages of CW515 premium Wax Ribbon
Excellent Substrate Compatibility - Performs reliably across a wide range of common label stocks (coated paper, semi-gloss, and many synthetic face stocks), reducing the need to switch ribbons for different jobs.
Excellent Scratch Resistance - Formulated to resist mechanical abrasion during handling and shipping; in physical testing CW515 only begins to show scratch marks after 150 rubs under a 680 g weight.
High Sensitivity & Definition - Low melting/transfer energy requirement yields sharp, high-contrast prints even at modest printer settings.
Proven Resistance Performance
Water resistance
Low-temperature resistanc
Recommended Use Cases
Receipt and delivery labels for warehouses
Logistics & Shipping Labels
Pre-packaging
Retail labels
Clothing tags
Why Choose Thermal Transfer Ribbons from Codewel
As a dedicated ribbon supplier, Codewel brings several supplier-side advantages that make sourcing CW515 simpler, safer and more cost-effective:
Reliable quality control & Competitive pricing
Codewel applies strict incoming-material inspections and production QC to ensure every roll meets the CW515 performance specs you expect.
With optimized supply-chain and production scale, Codewel offers CW515 at economical price points without compromising on tested durability or print quality.
Sample & testing service & Technical support
Codewel can provide sample rolls and assist with on-site or remote print testing so you can verify barcode performance and abrasion resistance before committing to a larger order.
Our team can help recommend printer settings (heat, speed, pressure) and substrate pairings to maximize print life and barcode readability.
lexible ordering & inventory support
We work with B2B customers to support roll sizes and MOQ options that fit production needs, reducing stockouts and excess inventory costs.
One-stop TTR Factory in China
CW515 is an economical, enhanced wax ribbon that combines excellent substrate compatibility, strong scratch resistance and high-definition print results (2.2 ODR, sharpness 85). It's built for real-world label applications and, when sourced from Codewel, comes with quality control, cost advantages and supplier support that help keep your labeling line running smoothly.
